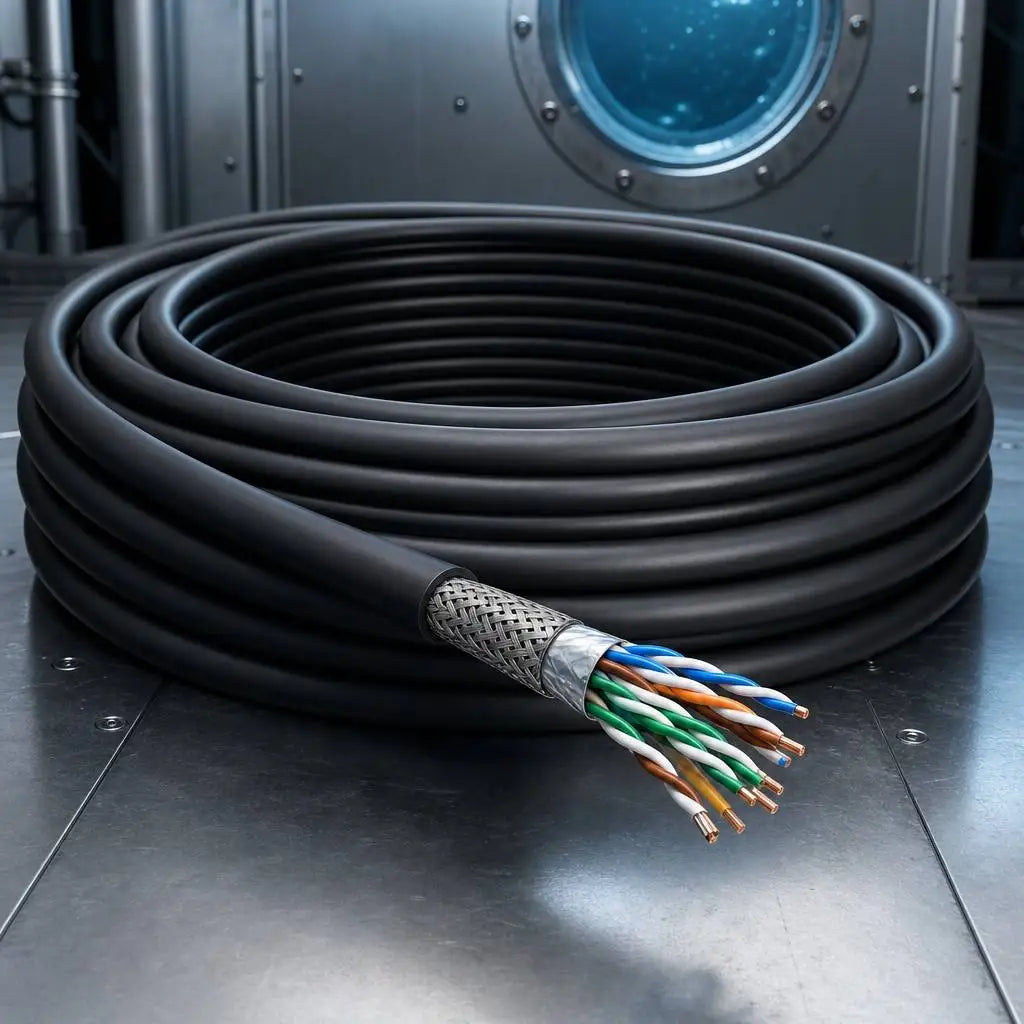

Watertight Subsea Data Cable 7 Pairs x 0.34mm2 FEP Insulated Tinned Copper Shielded CSM Sheath 50 Bar Underwater

Watertight Subsea Data Cable 7 Pairs x 0.34mm2 FEP Insulated Tinned Copper Shielded CSM Sheath 50 Bar Underwater

$5.00 USD
$5.00 USD
促销 售罄
已含税费。 结账时计算的运费。
Number of Cores

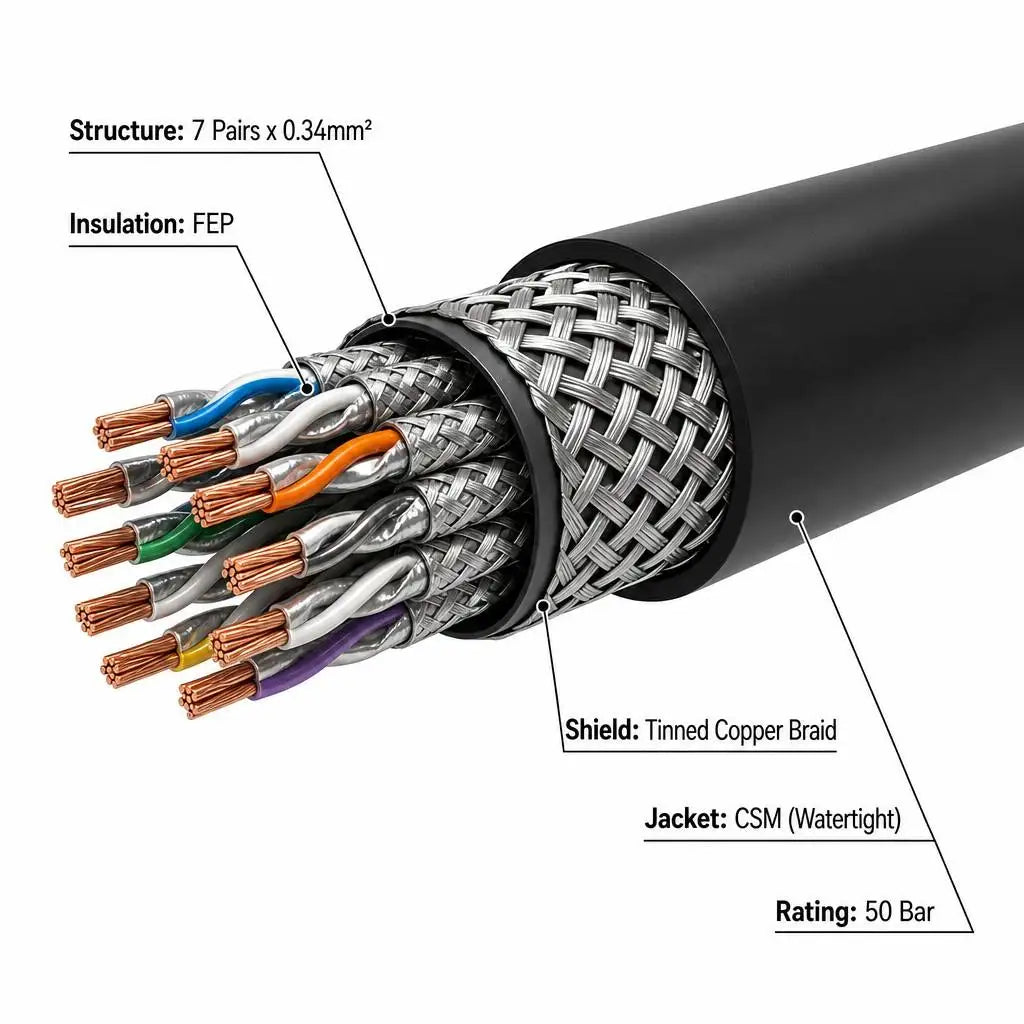

Product Specifications

  • Shielding: Tinned Copper Braid, 90% min coverage
  • Tinned Copper Braid: 90% min coverage
  • Core Identification: Numbered 1-14, white FEP
  • Conductor Construction: 7 x 0.25 mm water-blocking tinned copper
  • Insulation Outer Diameter: 1.3 +/- 0.1 mm
  • Pair Twist Diameter: 2.5 +/- 0.2 mm
  • DC Resistance: 59.6 Ω/km max at 20°C
  • Insulation Resistance: Core-core 1000 MOhm.km min; core-shield 500 min
  • Withstand Voltage:: 4000 V AC core-core; 2500 V AC core-shield, 5 min
  • Longitudinal Water Blocking: 50 bar (5 MPa) 24 h, leakage below 0.1 L/h
  • Insulation Material: FEP
  • Conductor Material: Water-Blocking Tinned Copper
  • Rated Voltage: 500/500 V AC/DC
  • Size: 7 x (2 x 0.34) mm2
  • Model Number: DPCZ5MCSM
  • Brand Name: PrimePro
  • Place of Origin: BEIJING
  • Application: Subsea signal transmission
  • IP Level: Not rated - continuous seawater immersion
  • Jacket: Chlorosulfonated Polyethylene (CSM)
  • Rated Current: 4 A
  • Type: Watertight Data Cable, 7 twisted pairs
  • Working Temperature: -40°C to +90°C
  • Flame Retardant Class: Flame Retardant
查看完整详细信息
