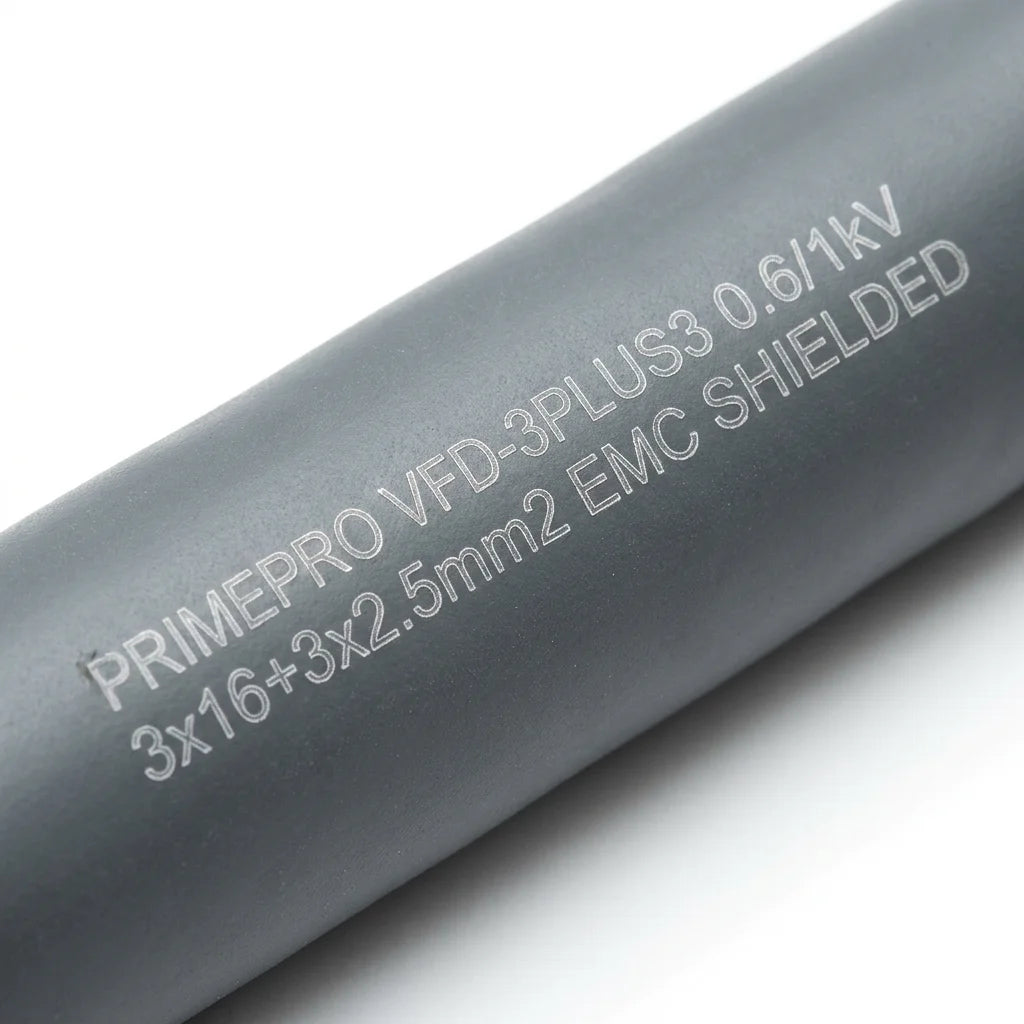

PRIMEPRO VFD 3Plus3 Symmetrical Motor Cable 0.6/1kV Double Shielded EMC Compliant Flexible XLPE Oil Res II High-Temp Power Cable

Product Specifications

• Outer Diameter (OD): 24.5mm (for 3x16+3x2.5mm²)

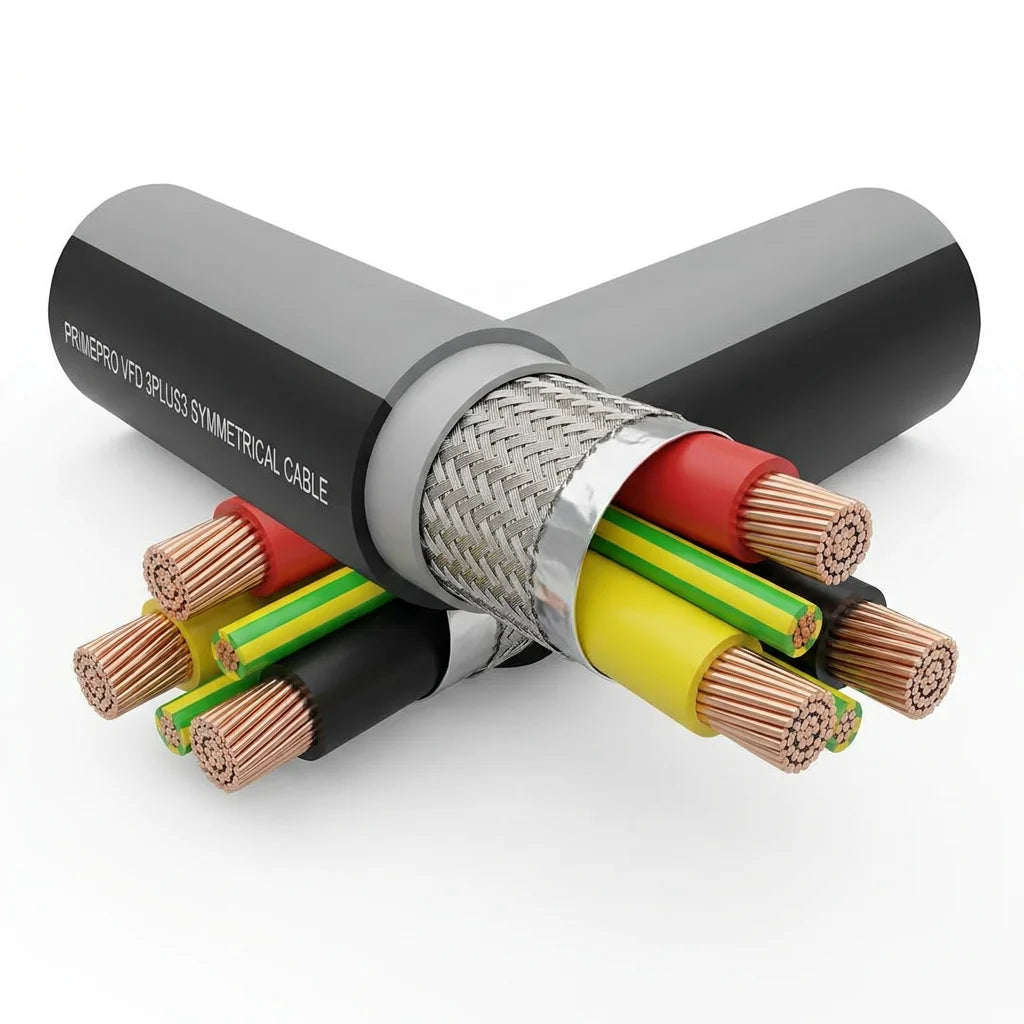

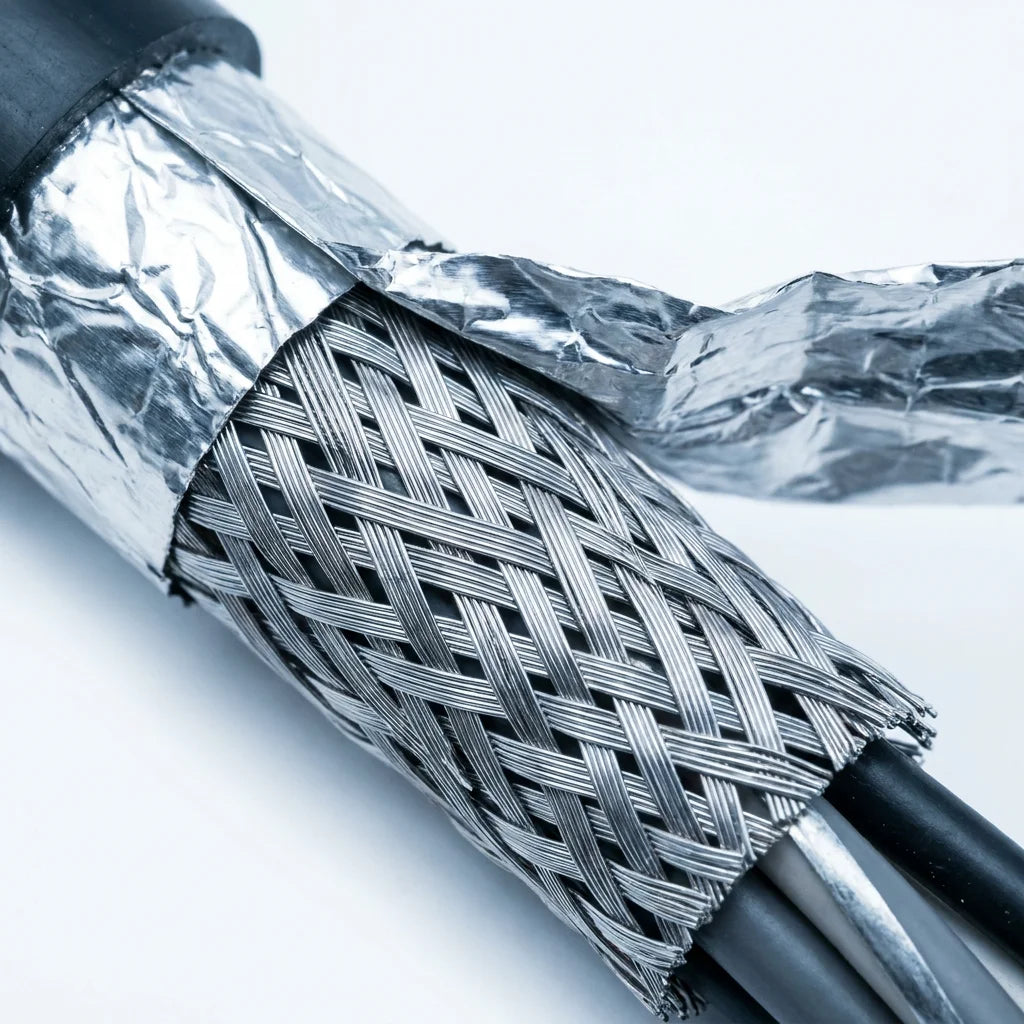

• Shielding: AL-Foil + 85% Tinned Copper Braid (Dual Layer)

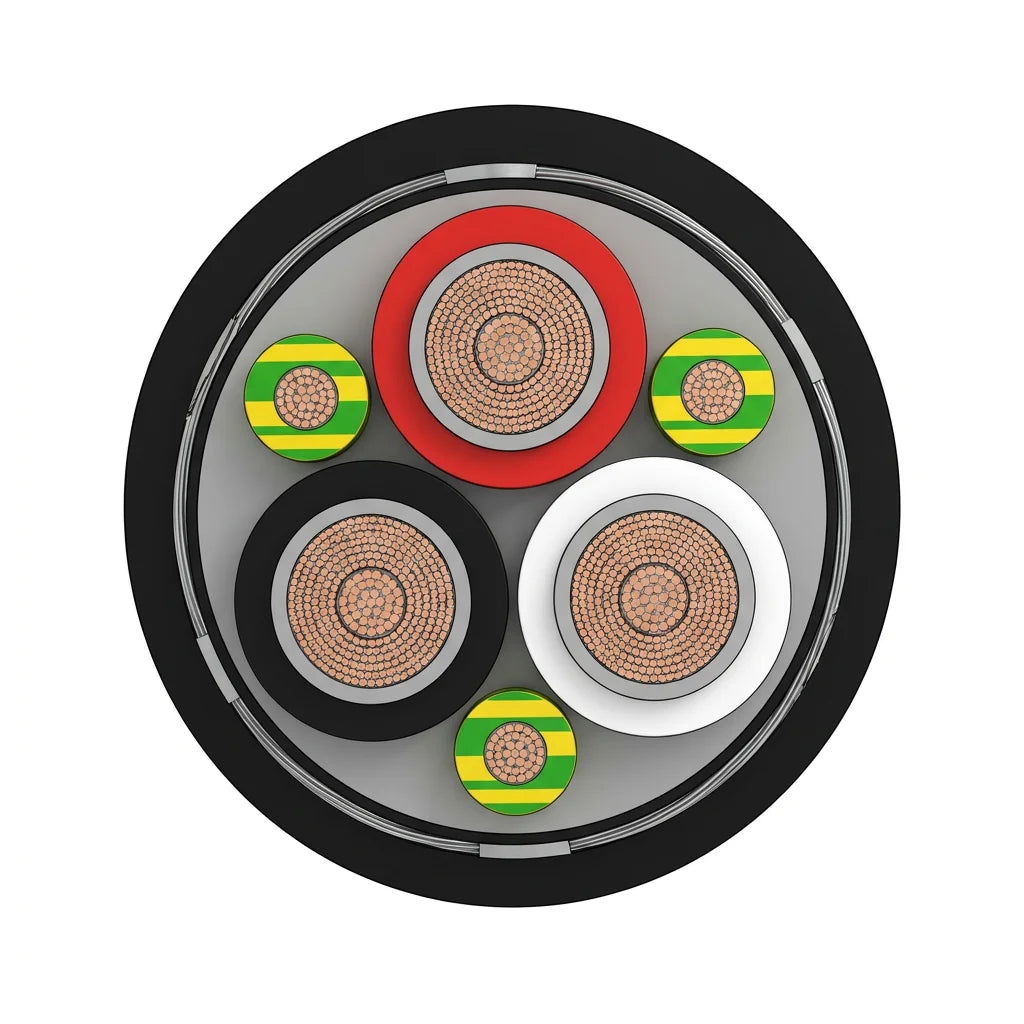

• Grounding Structure: 3 Symmetrical Interstitial Earth Cores
• Transfer Impedance: < 100 mΩ/m (at 30 MHz) for superior EMC
• Coupling Capacitance: Low Capacitance (XLPE insulation)
• Bending Radius: 10 * OD (Dynamic) / 6 * OD (Static)
• Oil Resistance: Oil Res II Compliant
• Service Life: > 10 Million Bending Cycles (High-flex version)
• Compliance: VDE 0281 / IEC 60502-1
• Color: Industrial Grey (RAL 7001) / Matte Black
• Place of Origin: CN;BEI
• Conductor Material: Annealed Tinned Copper (Class 5 Flexible)
• Insulation Material: High-Grade XLPE (90°C Rated)
• Rated Voltage: 0.6/1kV (600V/1000V)
• Size: 3x4+3x0.75mm² up to 3x240+3x42mm²
• Model Number: PR-VFD-3Plus3
• Brand Name: PrimePro
• Application: VFD / AC Motor Drive System / CNC Machines
• IP Level: N/A (Industrial Wiring)
• Jacket: N/A (Industrial Wiring)
• Rated Current: 35A - 600A (Depending on size)
• Type: Symmetrical Shielded VFD Cable
• Working Temperature: -40°C to +90°C
• Flame Retardant Class: IEC 60332-1 / FT4 / VW-1
