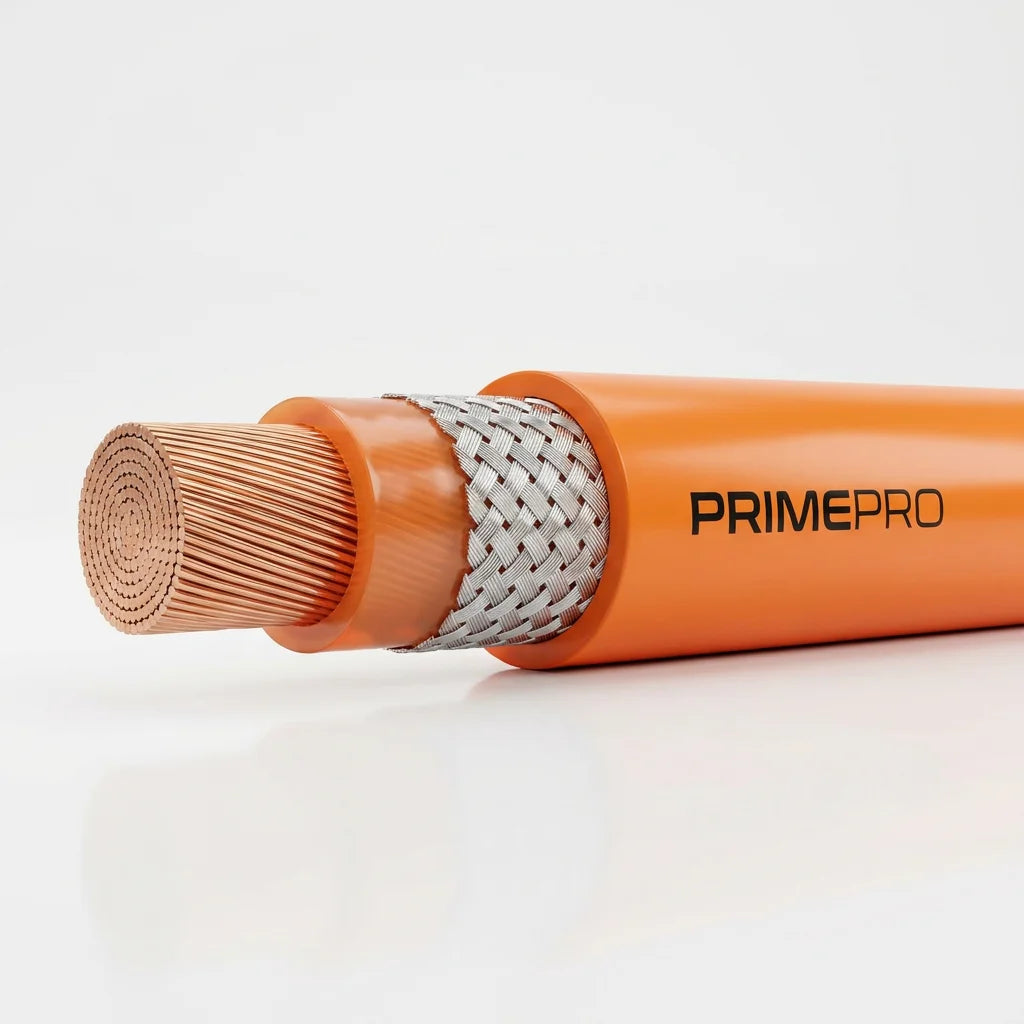

PrimePro EV-Shield High-Voltage Cable | 600V/1000V Orange Powertrain Wire | EMI Shielded Silicone XLPE | Battery Inverter Spec |

Product Specifications

• Outer Diameter (OD): 14.2mm (for 50mm²)

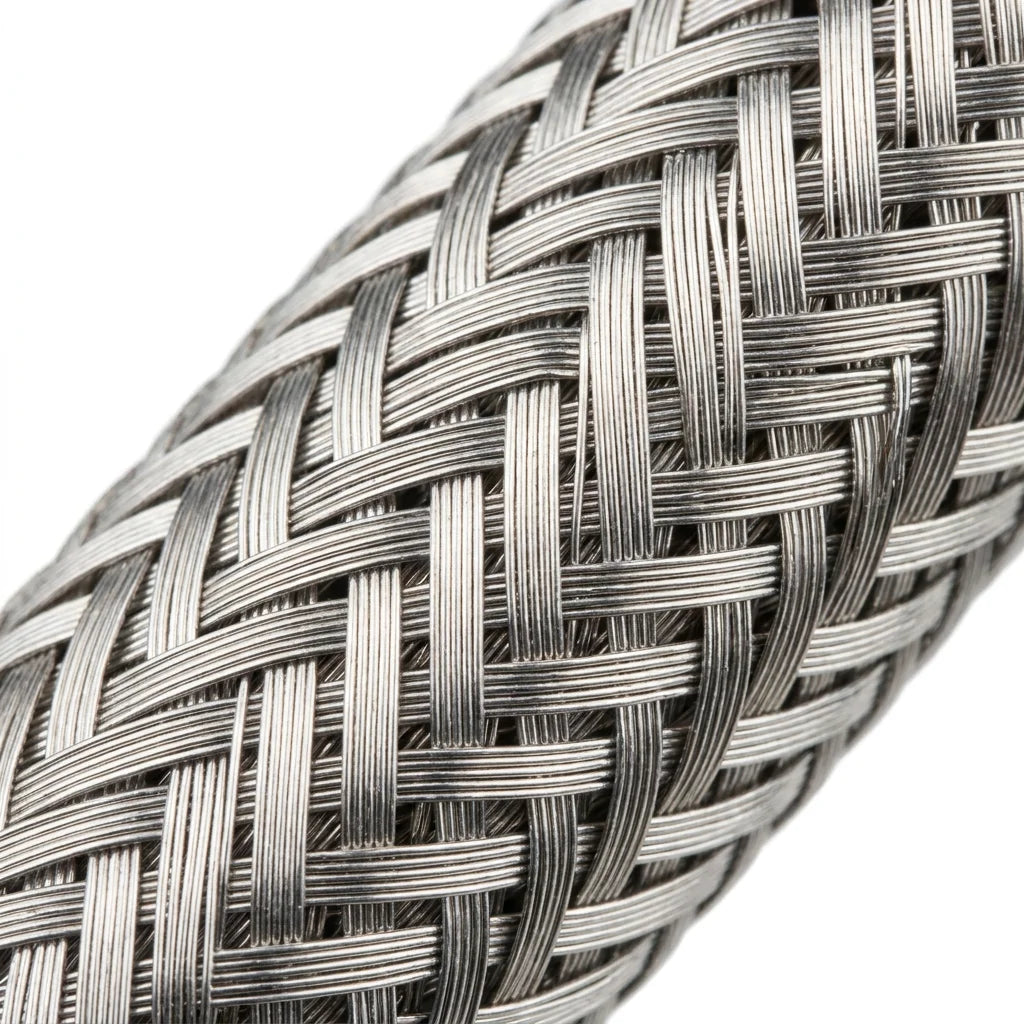

• Shielding Coverage: ≥85% Tinned Copper Braid + AL-Foil (Superior EMC)
• Bending Radius: 4 * OD (Static) / 8 * OD (Dynamic)
• Dielectric Strength: 5.0kV / 5min No Breakdown
• Oil Resistance: IRM 902 / 903 compliant
• Compliance: ISO 19642 / LV 216
• Halogen-Free: Low Smoke Zero Halogen (LSZH)
• Vibration Resistance: Designed for Automotive Grade Durability
• Short-circuit Temp: +250°C (up to 5 seconds)
• Colors Available: Standard Safety Orange (RAL 2003)
• Place of Origin: CN;BEI

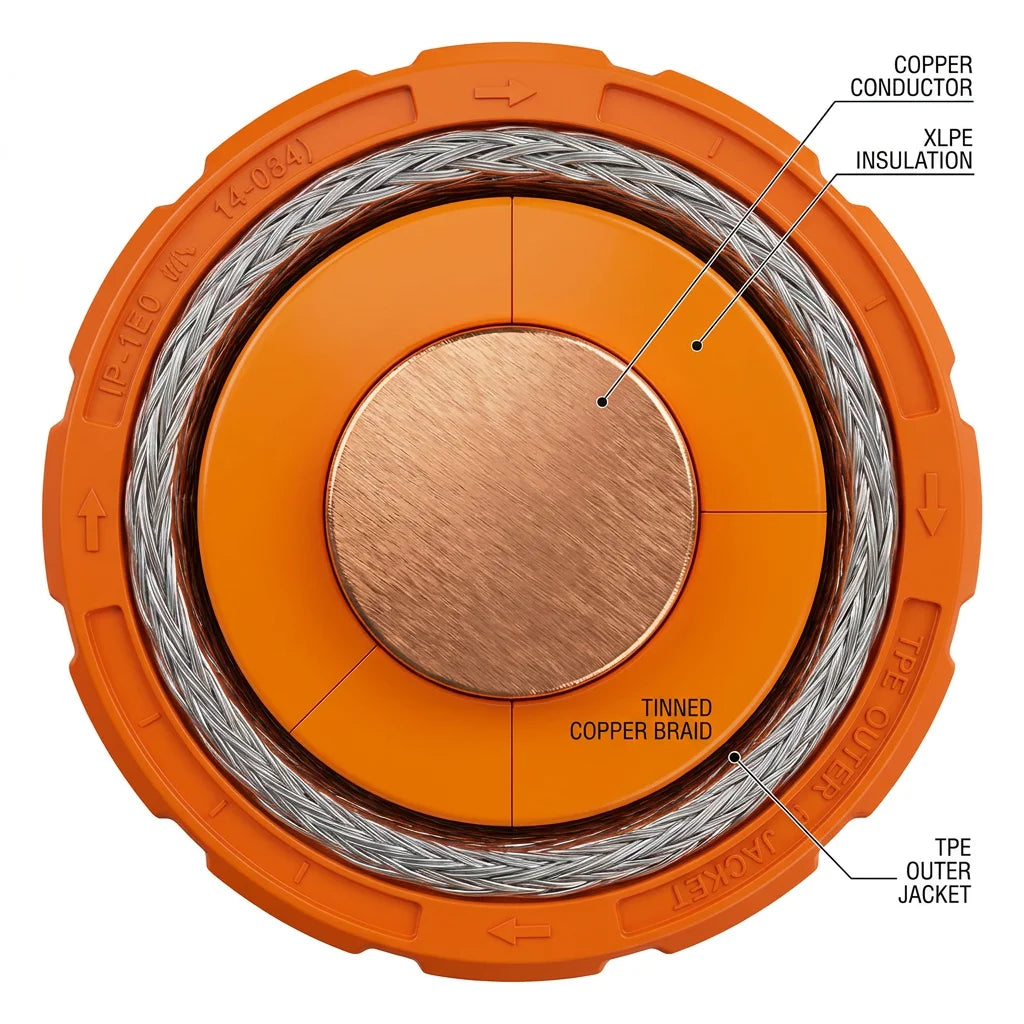

• Conductor Material: High-Purity Tinned Copper (Class 5/6 Flexible)
• Insulation Material: High-Temp Silicone Rubber / Cross-linked PE (XLPE)
• Rated Voltage: 600V AC / 1000V DC (High Voltage)
• Size: 16mm² / 25mm² / 35mm² / 50mm² / 70mm² (Single Core
• Model Number: PR-EV-HVP-Shield
• Brand Name: PrimePro
• Application: EV Battery to Inverter / Motor Connection (Intern
• IP Level: N/A (Internal Wiring)

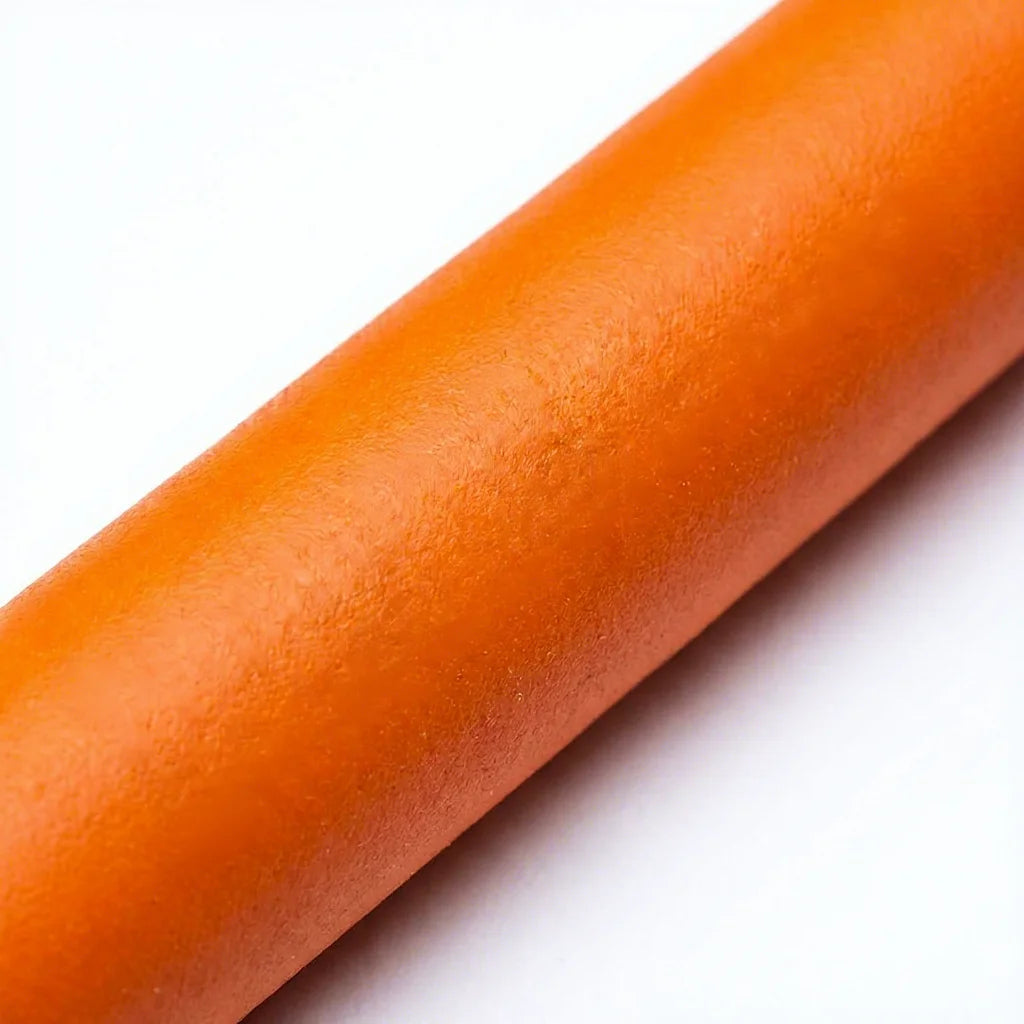

• Jacket: High-Flex Orange XLPE/Silicone
• Rated Current: 150A - 400A (Depending on size)
• Type: Shielded High-Voltage Vehicle Cable
• Working Temperature: -40°C to +150°C (Silicone) / +125°C (XLPE)
• Flame Retardant Class: VW-1/FT1
