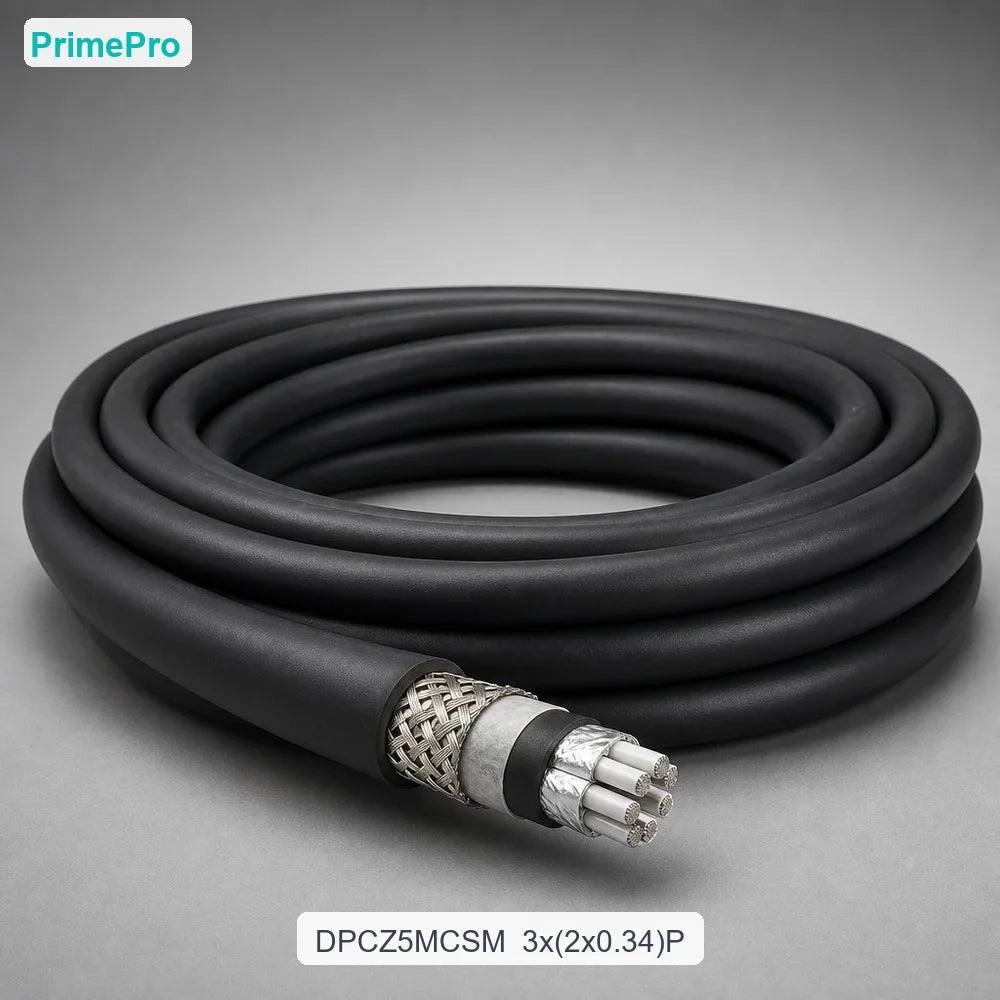

Watertight Underwater Electrical Cable DPCZ5MCSM 3x(2x0.34)P 500/500V FEP CSM Sheath 50 bar

Product Specifications

• Product Type: Watertight electrical cable for underwater signal transmission
• Model: DPCZ5MCSM

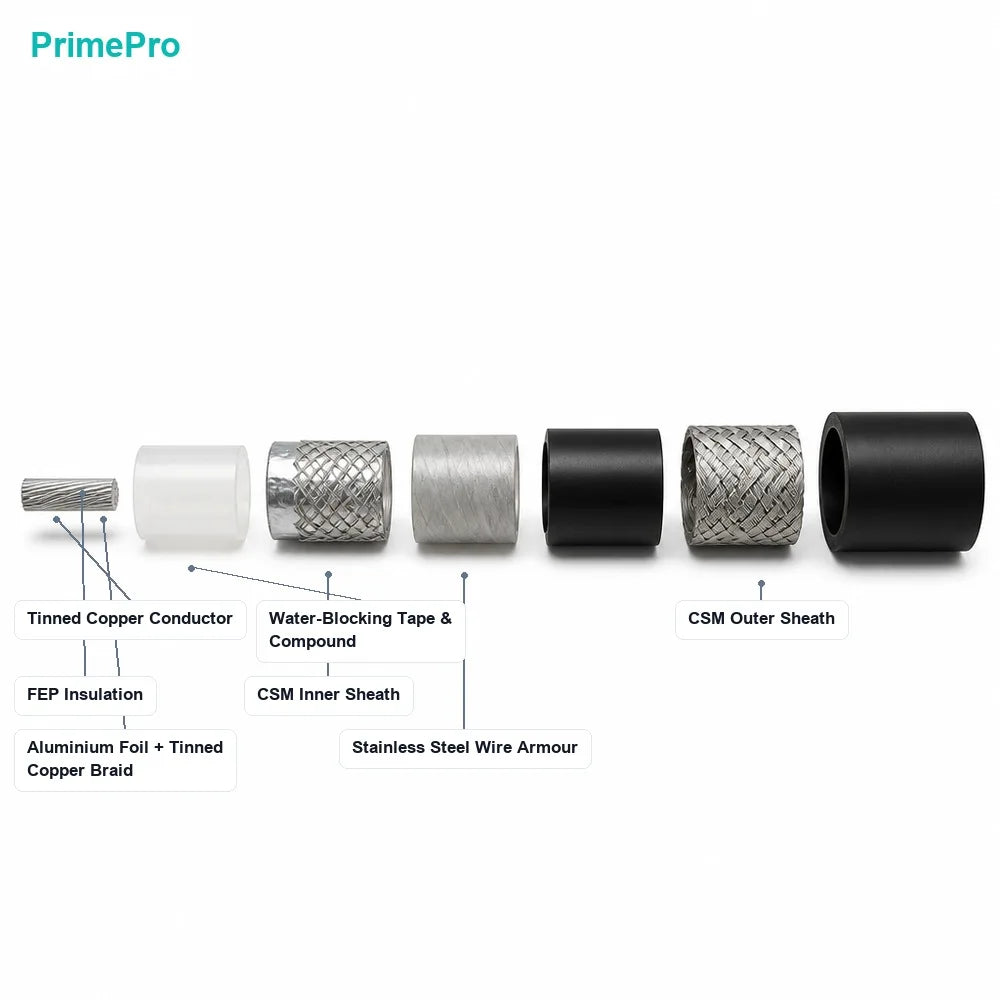

• Construction: 3x(2x0.34)P - 3 twisted pairs, 6 cores

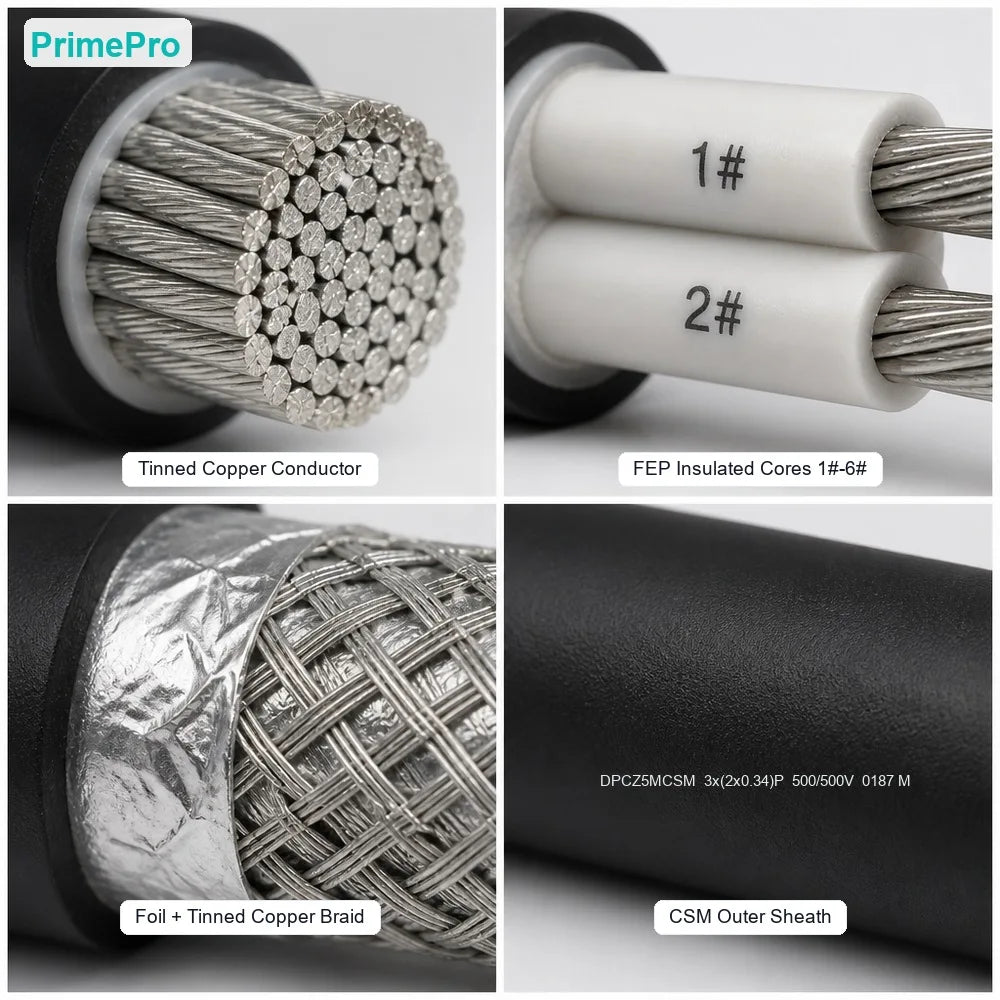

• Conductor: Water-blocking tinned copper, 7/0.25 mm (0.34 mm²)
• Insulation: FEP, 1.3 ± 0.1 mm core OD, printed 1# - 6#
• Shield: Aluminium foil + tinned copper braid, coverage >= 90%
• Inner / Outer Sheath: Chlorosulfonated polyethylene (CSM), black
• Armour: Stainless steel wire braid, 0.25 mm, coverage >= 80%
• Watertight Performance: 50 bar (5 MPa) longitudinal water blocking, 24 h

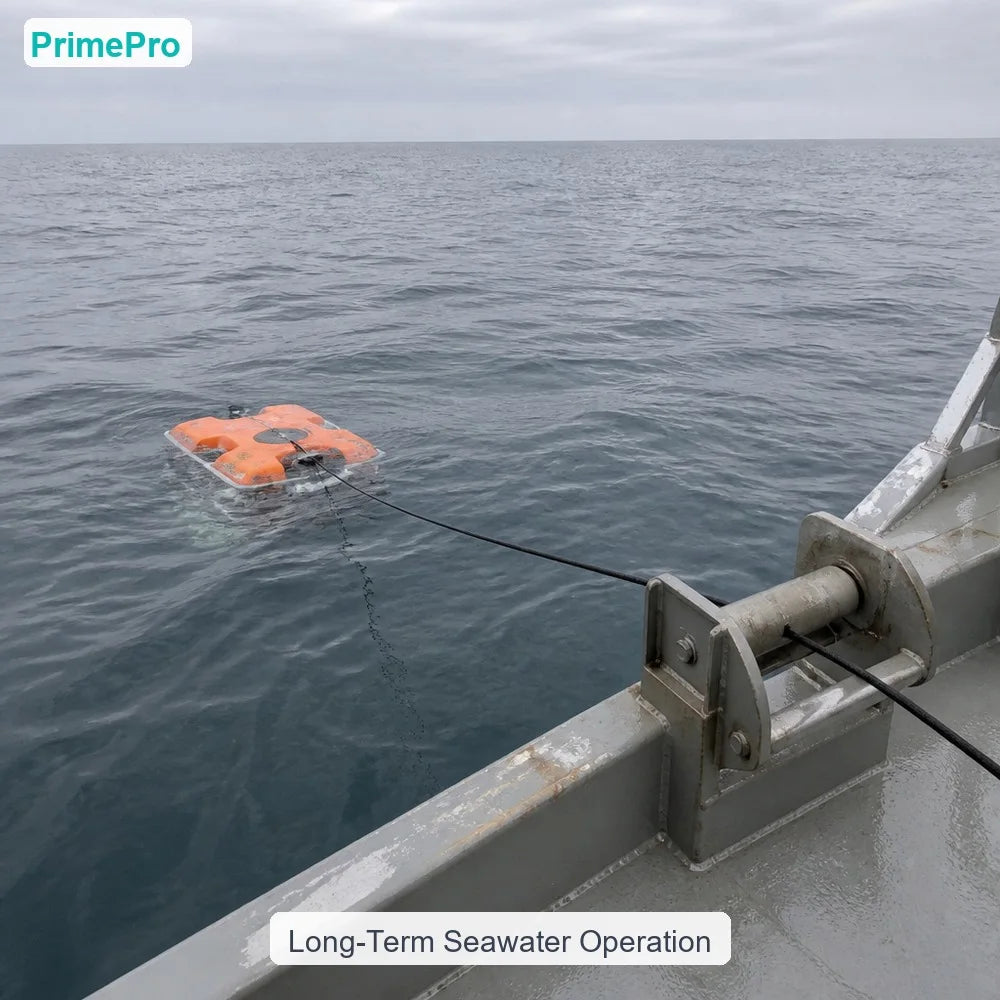

• Application: Long-term seawater operation, subsea signal transmission
• IP Level: Ip68
• Conductor Material: Tinned copper, water-blocking, 7/0.25
• Insulation Material: FEP (fluorinated ethylene propylene)
• Jacket: CSM, black, >=1.0 / >=1.5 mm
• Working Temperature: -40 °C to +90 °C
• Model Number: DPCZ5MCSM
• Brand Name: PrimePro
• Place of Origin: Beijing
• Application: Underwater / seawater signal transmission
• Size: 3x(2x0.34)P; OD 16.0 ± 0.5 mm
• Shielding: Aluminium foil + tinned copper braid, coverage >=
• Flex Life: Subject to application conditions
• Impedance: To be confirmed
