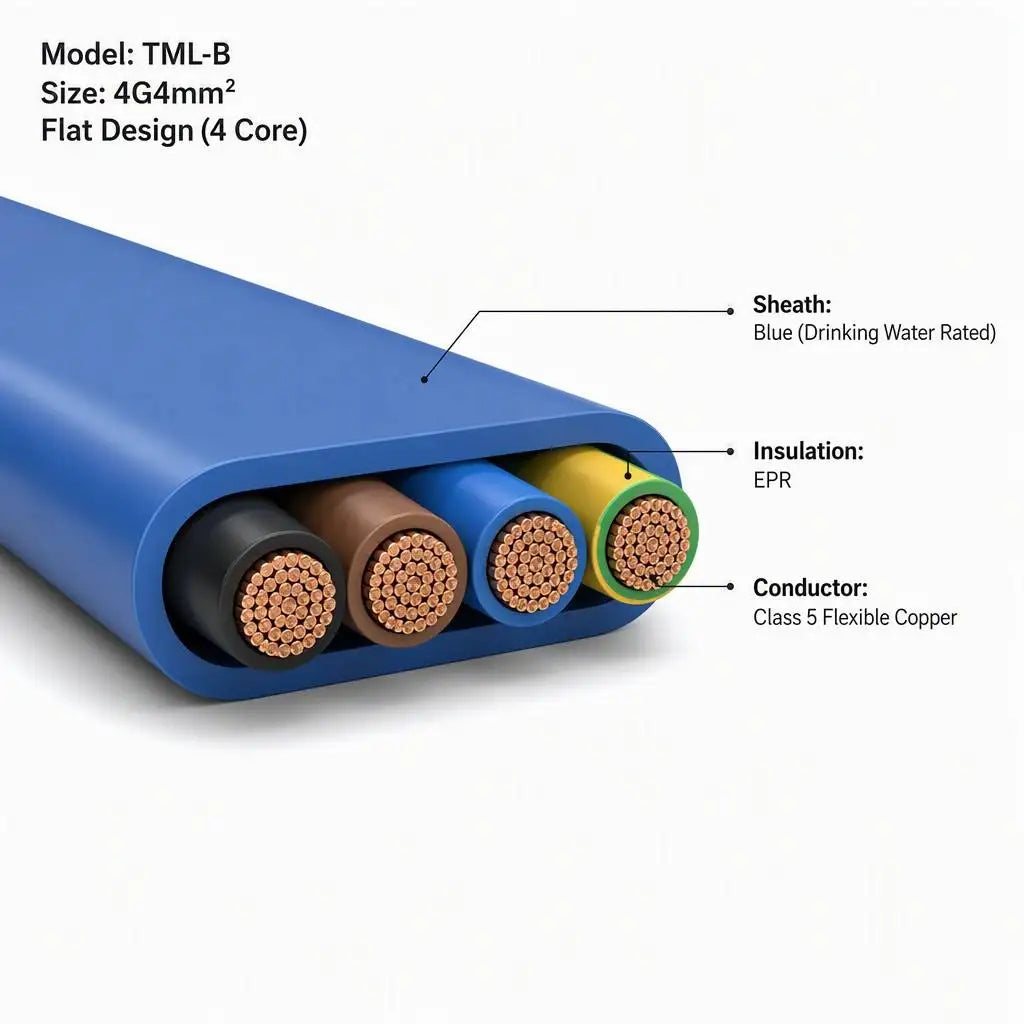

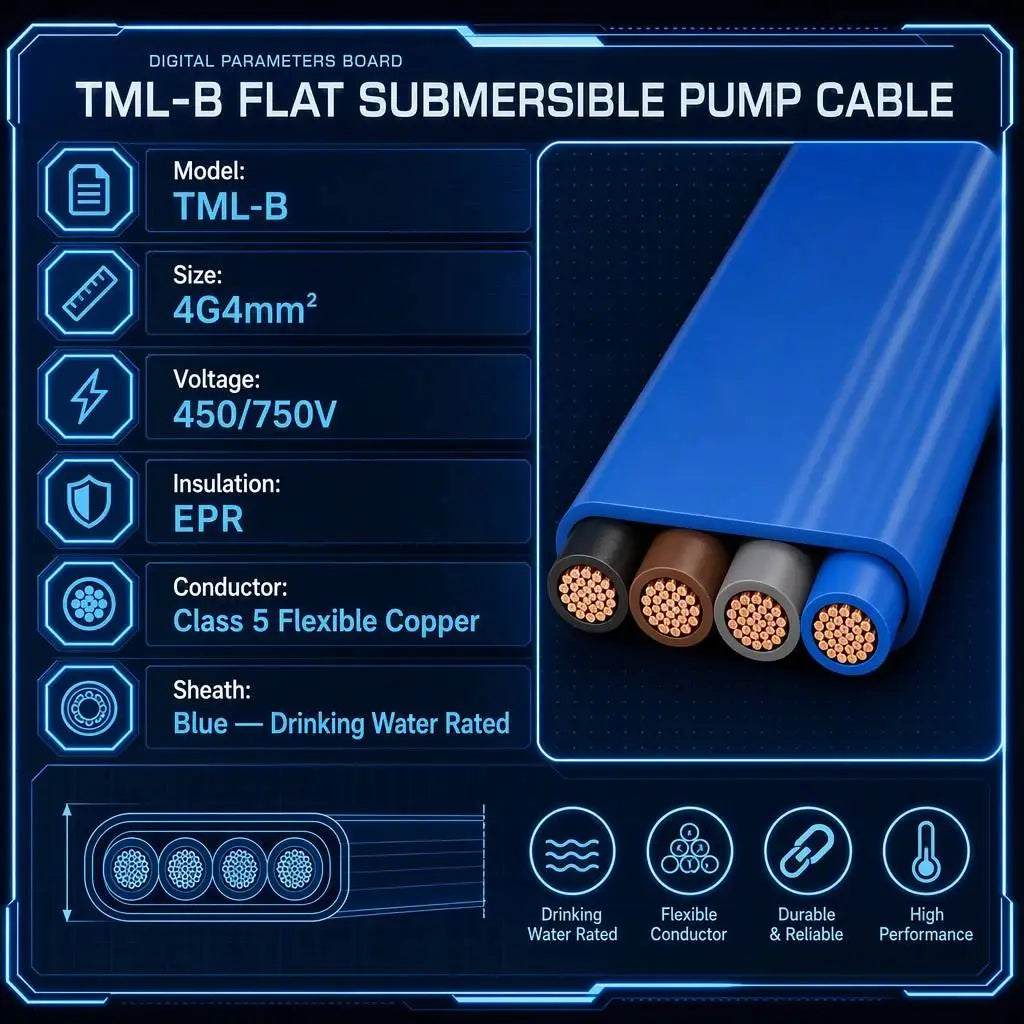

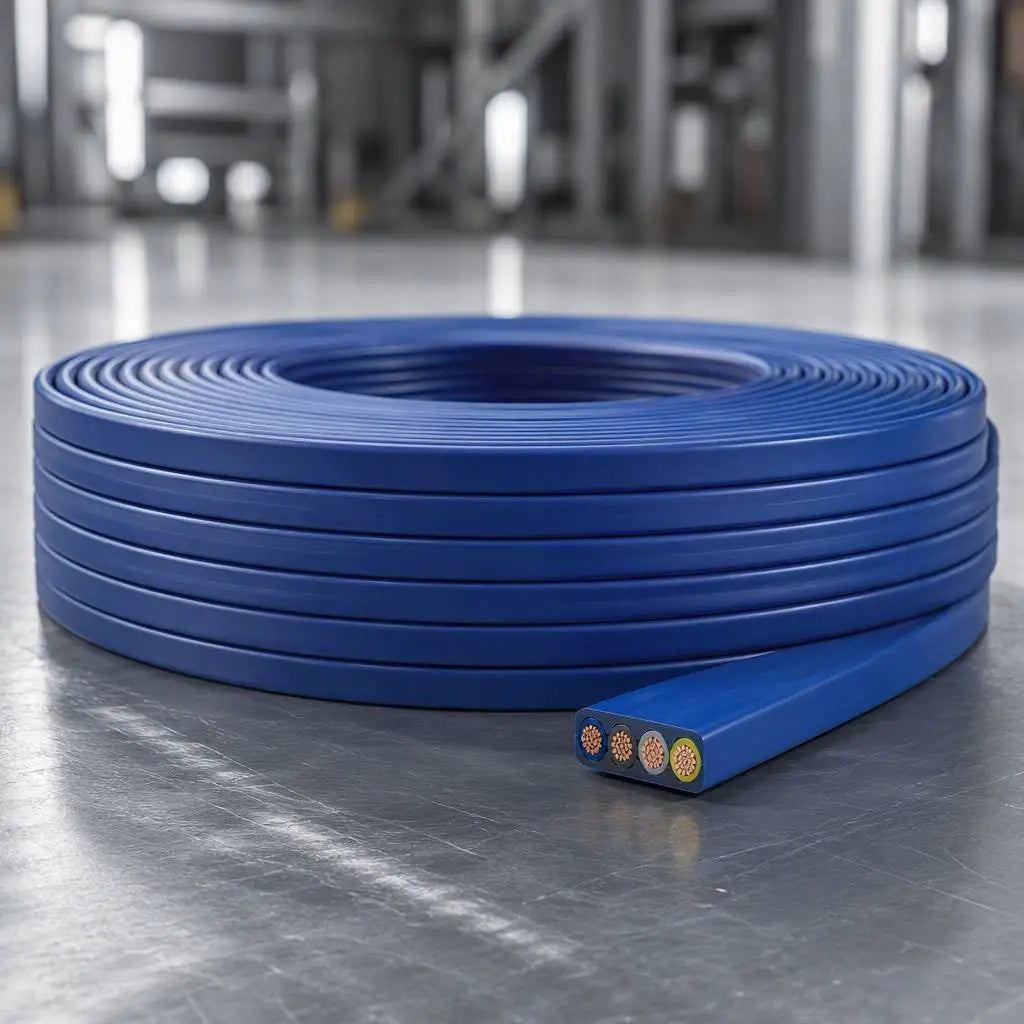

TML-B 4G4mm2 Flat Submersible Pump Cable EPR Insulated Drinking Water Rated Blue Sheath Class 5 Flexible Copper 450/750V 500m

Product Specifications

• Conductor Stranding: 51 x 0.31 mm, Class 5 flexible
• Water Temperature Rating: Up to 60°C
• Immersion Depth: up to 500 m continuous
• Max Tensile Stress: 15 N/mm2
• Min Bending Radius: 3d - 5d (d = cable dimension)
• Approx Dimensions: 8.0 x 22.5 mm to 9.5 x 25.5 mm
• Approx Net Weight: 360 kg/km
• Core Colours: Brown, Black, Grey + Green/Yellow Earth
• Sheath Colour: Blue
• Chlorine Limit: Not for water containing more than 0.5 mg/l chlorine
• Insulation Material: EPR
• Conductor Material: Bare Copper, Class 5 finely stranded
• Rated Voltage: U0/U 450/750 V
• Size: 4 mm² per core
• Model Number: TML-B 4G4 (S07BBH2-F construction equivalent)
• Brand Name: PrimePro
• Place of Origin: BEIJING

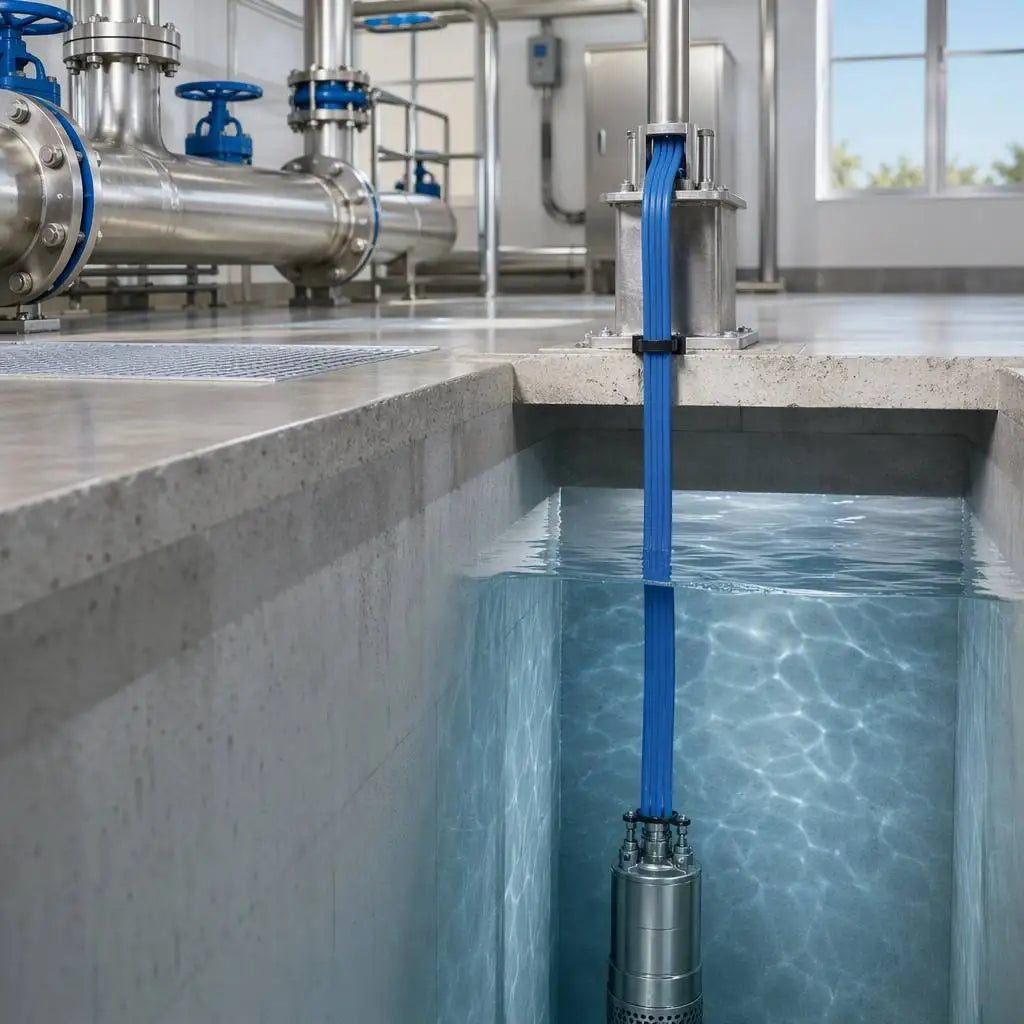

• Application: Continuous immersion in drinking & ground water, s
• IP Level: N/A
• Jacket: Special rubber compound, blue
• Rated Current: 43 A (in air) / 41 A (laid on surface), at 30°C am
• Type: Flat submersible pump cable
• Working Temperature: -40°C to +90°C
• Flame Retardant Class: Not classified to a specific flame class
