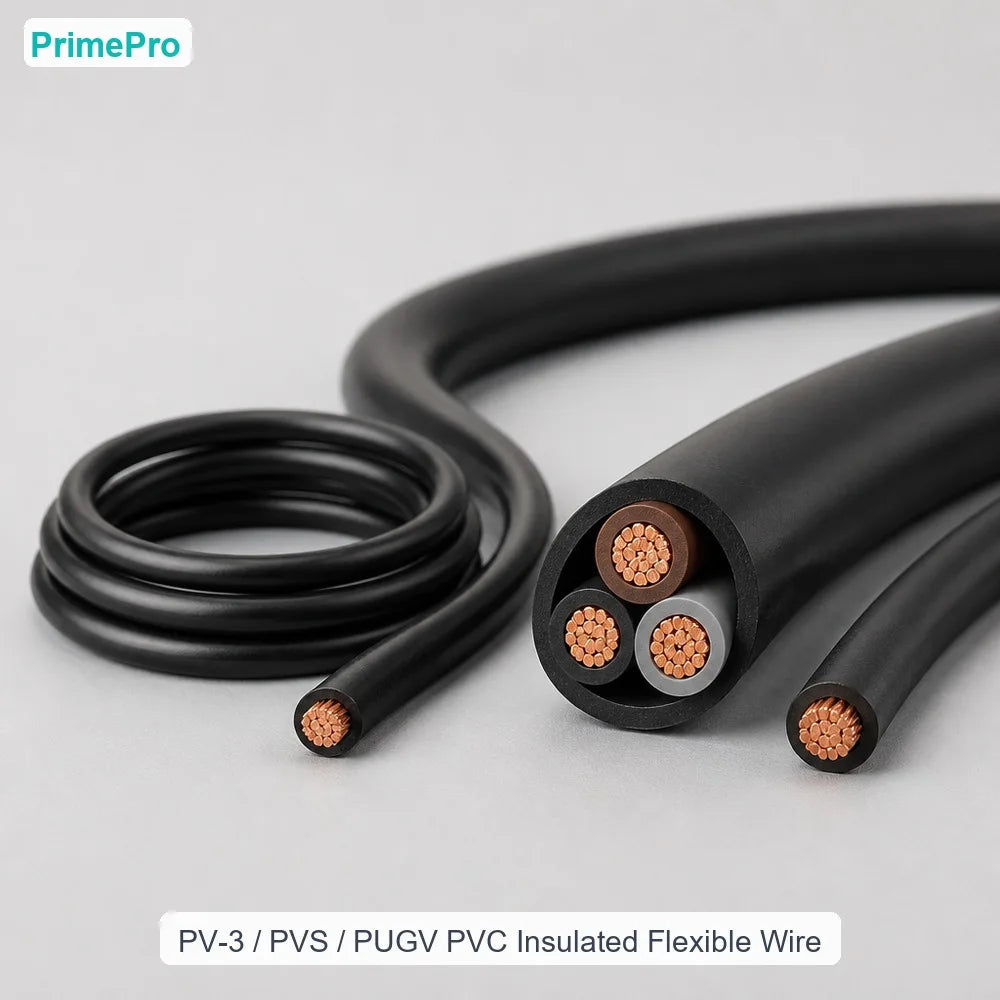

PVC Flexible Wire PV-3 1x0.75 1x10 PVS 3x1.5 3x2.5 PUGV 1x2.5 Copper Conductor 450/750V 380/660V GOST 31947

PVC Flexible Wire PV-3 1x0.75 1x10 PVS 3x1.5 3x2.5 PUGV 1x2.5 Copper Conductor 450/750V 380/660V GOST 31947

$0.18 USD
$0.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Number of Cores

Product Specifications

  • Rated Voltage: 450/750 V (PV-3, PUGV); 380/660 V (PVS)
  • Standard: IEC 60227-3 / IEC 60227-5 / GOST 31947-2012
  • Flame Retardant: IEC 60332-1-2
  • Available Sizes: 1x0.75, 1x2.5, 1x10 mm²; 3x1.5, 3x2.5 mm²

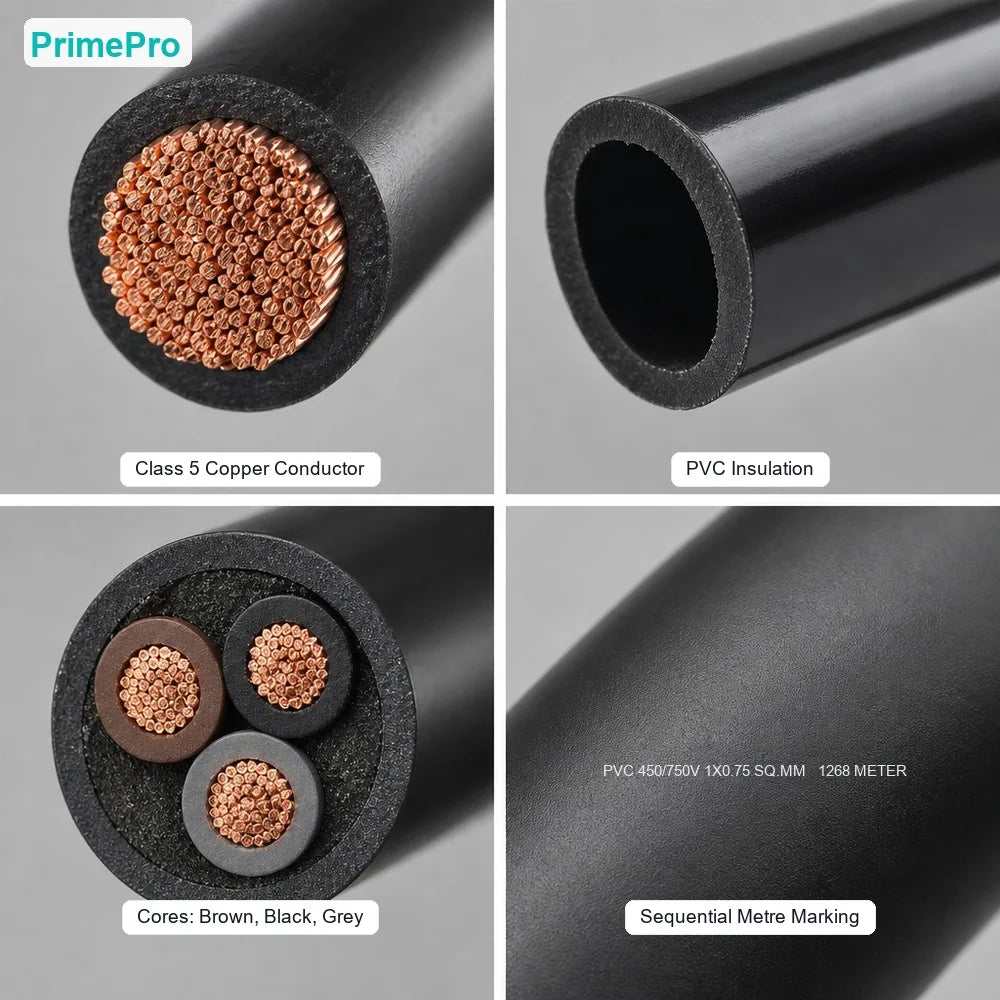

  • Core Identification: Brown / Black / Grey (multi-core); Black (single core)

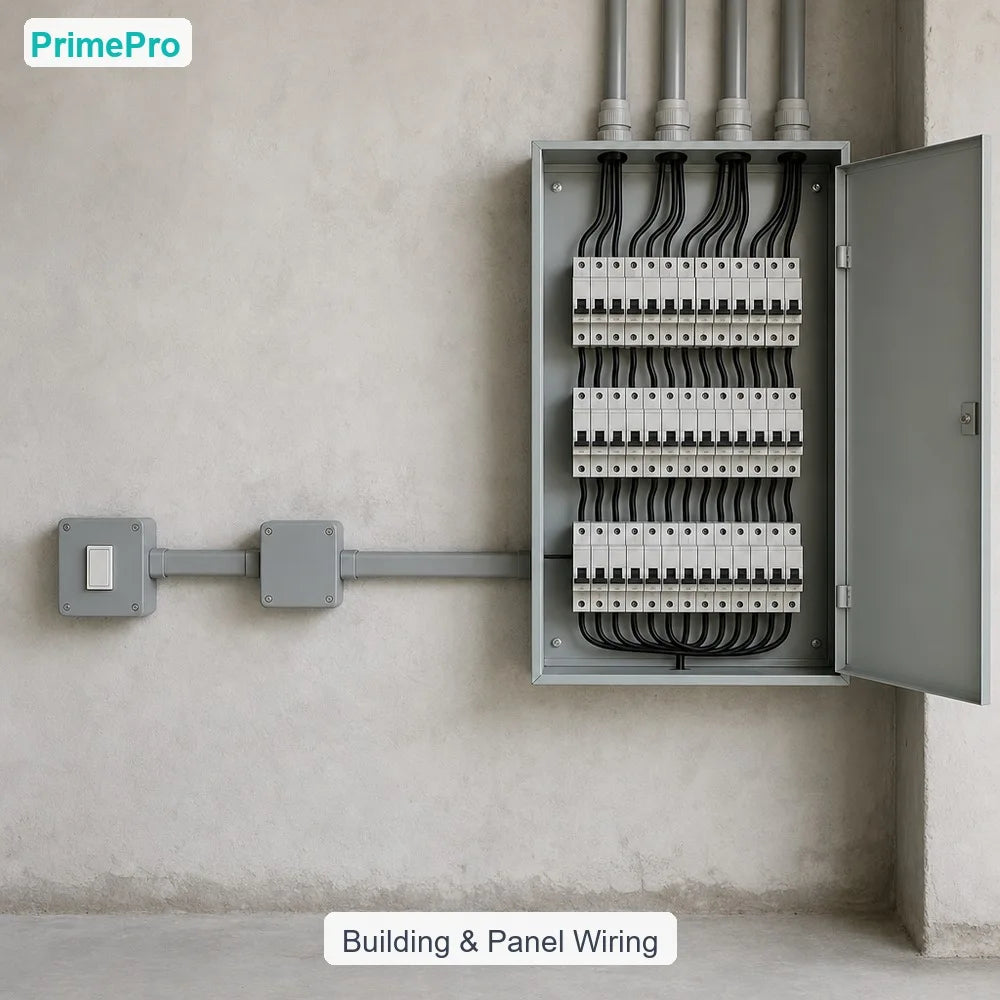

  • Application: Building wiring, panels & lighting
  • IP Rating: N/A (Wire; Depends on Installation)
  • Rated Current: Depends on Conductor Size and Installation Conditions
  • Operating Temperature: Up to 70°C (PVC Insulation)
  • Flame Retardant Rating: IEC 60332-1-2

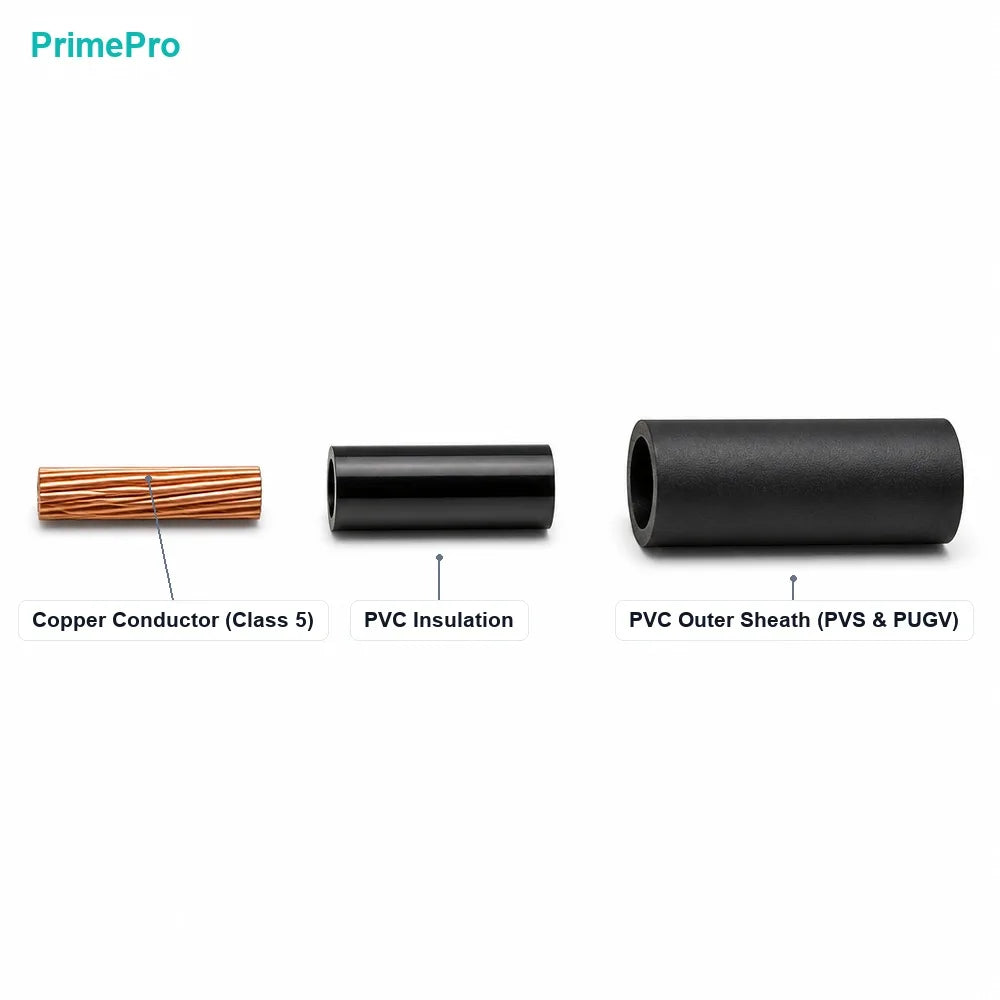

  • Conductor Material: Plain annealed copper, Class 5 flexible
  • Insulation Material: Plain annealed copper, Class 5 flexible
  • Jacket: PVC (PVS & PUGV); not sheathed (PV-3)
  • Number of Conductors: 1 Core / 3 Cores
  • Model Number: PV-3 / PVS / PUGV
  • Brand Name: PrimePro
  • Place of Origin: Beijing
  • Length: 100 meters
  • Type: PVC insulated flexible wire
