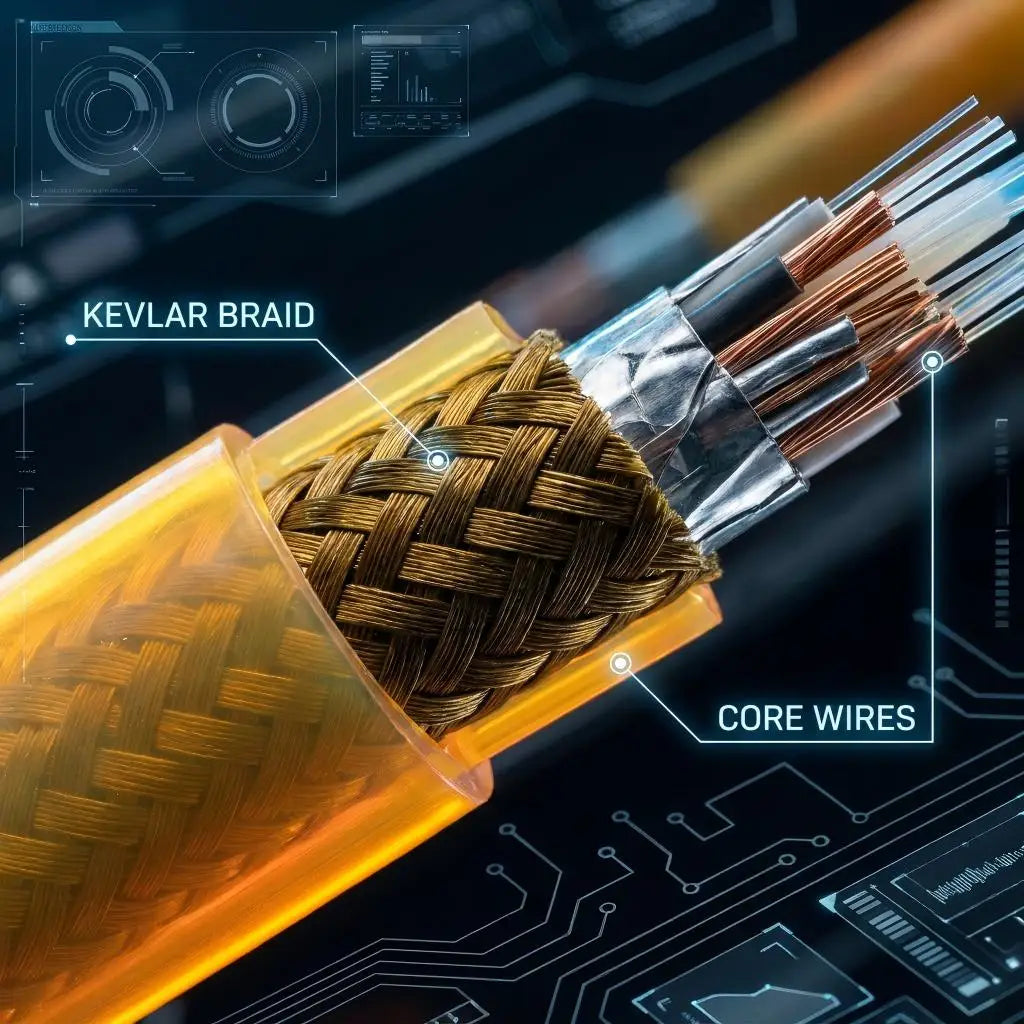

PrimePro ROV Zero Buoyancy Cable 3000m Depth 1.03 Density for Reinforced 10Gbps Data Rate 600V Power PE Hybrid Deep Sea

Product Specifications

• Depth Rating: Certified for 3000m Deep-Sea Missions
• Data Transmission: 10Gbps (CAT7 Class) / Fiber Optic Hybrid
• Hydrostatic Resistance: 30MPa Zero-Void Extrusion
• Buoyancy Variance: ±0.01 g/cm³ Tolerance Control
• Torsion Resistance: Optimized for ±180°/m Cyclic Stress
• Chemical Resistance: 100% Seawater, Oil, and Microbe Resistant
• Water-Blocking: Longitudinal Gel-Filled / Swellable Tape
• Strength Core: Axial DuPont Kevlar Aramid Member
• Signal Integrity: Precision Differential Impedance Control
• Mission Life: >10 Million Dynamic Flex Cycles
• Insulation Material: PE
• Place of Origin: CN;BEI
• Conductor Material: Class 6 Ultra-Fine Tinned Copper
• Rated Voltage: 600V / 1000V DC
• Size: 12.5mm
• Size: 15mm
• Model Number: P-ROV-ZERO-3000
• Brand Name: PrimePro
• Application: ROV, AUV, Subsea Survey, Marine Robotics
• IP Level: IP68 (300 Bar / 30MPa Tested)
• Jacket: Specialized Foamed Polyurethane (PUR)
• Rated Current: 18A - 22A (Per 14AWG Core)
• Type: Zero Buoyancy
• Working Temperature: -40°C to +90°C
• Flame Retardant Class: IEC 60332-1-2
