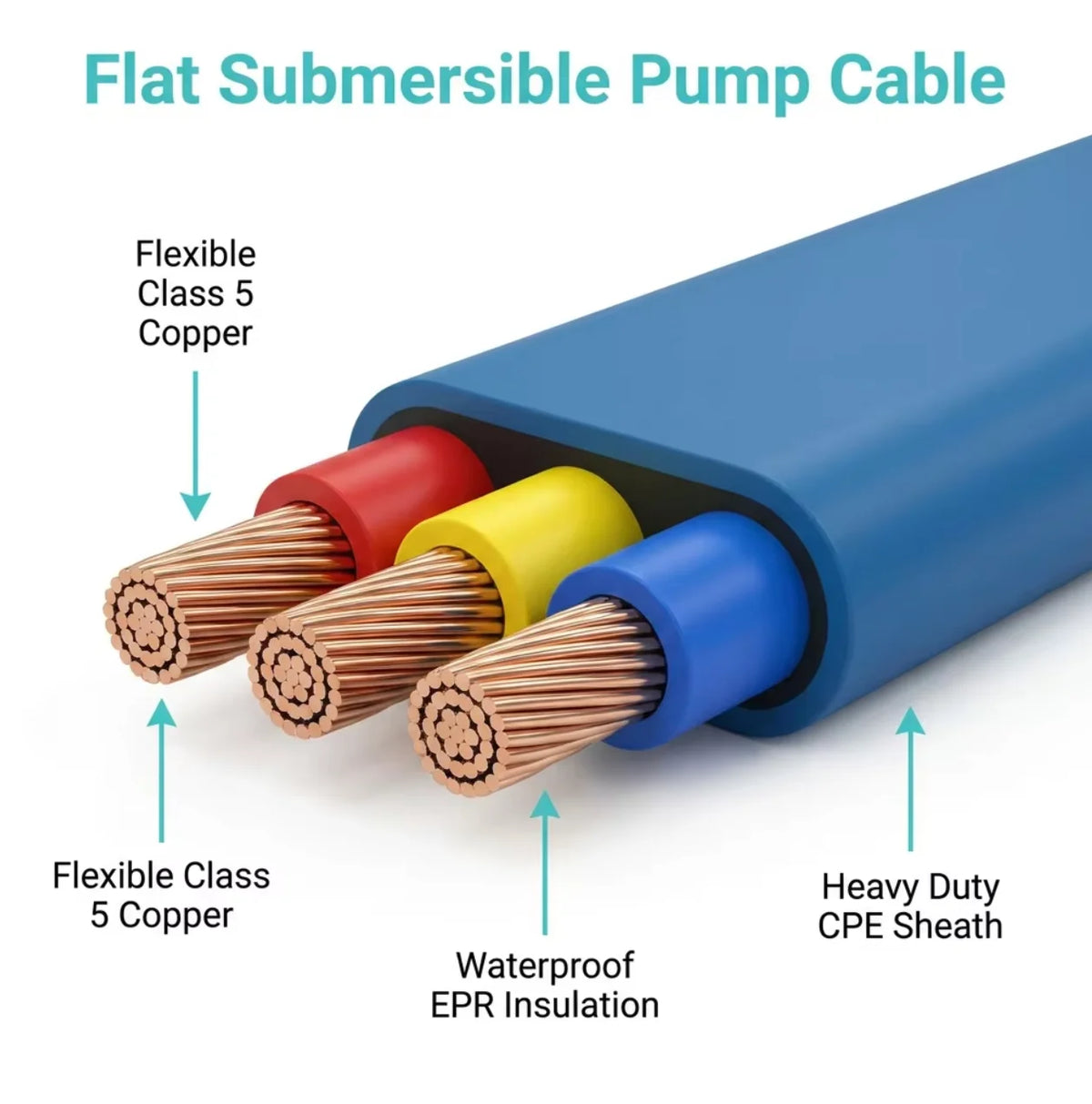

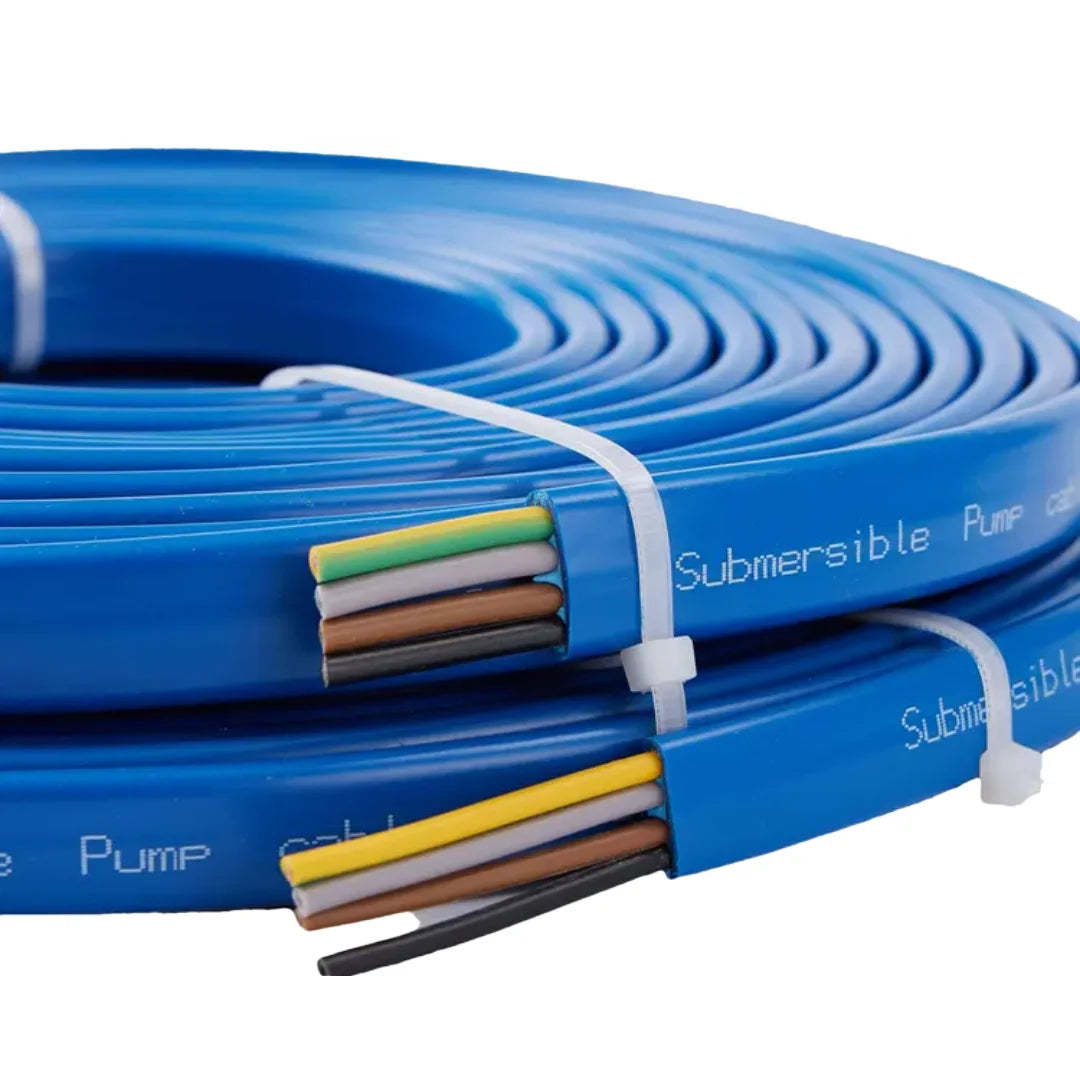

PrimePro JHS Tough Flexible Copper Conductor PVC Insulated Low Voltage IP68 Waterproof Submersible Deep Well Pump Cable 5MPa

Product Specifications

• Water Pressure Resistance: Operates stably up to 5 MPa (50 Bar / 500m depth)
• Tear Strength: High-tear and abrasion-resistant CPE outer compound (ST8)
• Insulation Resistance: > 500 MΩkm at 20°C
• Operating Temp: -40°C to +90°C continuous wet/submerged operating limit
• Chemical Resistance: 100% resistant to weak acids, chlorine, alkalis, and sewage oils
• Bending Radius: 6 x Overall Cable Thickness (Highly flexible flat layout)
• Dielectric Strength: 3000V AC withstand test passed for 5 minutes
• Concentricity Guarantee: > 93% (Prevents water seepage and insulation leakage)
• Laser Meter-Marking: High-durability laser-printed markings every 1 meter
• Conductor Tinning: Precision-coated tin layer prevents copper blackening in wet wells
• Conductor Material: Copper
• Insulation Material: PVC
• Rated Voltage: 300 V
• Rated Current: 50A
• Type: Low Voltage
• Working Temperature: 90°C
• Place of Origin: CN;BEI
• Size: customizable
• Model Number: JHS
• Brand Name: PrimePro
• Application: Submersible,elevator
• IP Level: IP68 (Waterproof Submerged up to 500m Depth)
• Jacket: PVC/rubber
• Flame Retardant Class: IEC 60332-1-2 / FT1 (Self-extinguishing Outer Shea
