Industrial Humidifier Hybrid Cable 6 Core 22AWG Power Signal Tinned Copper Stranded Flexible IP67 Rated 100 Impedance Tube Spa

Product Specifications

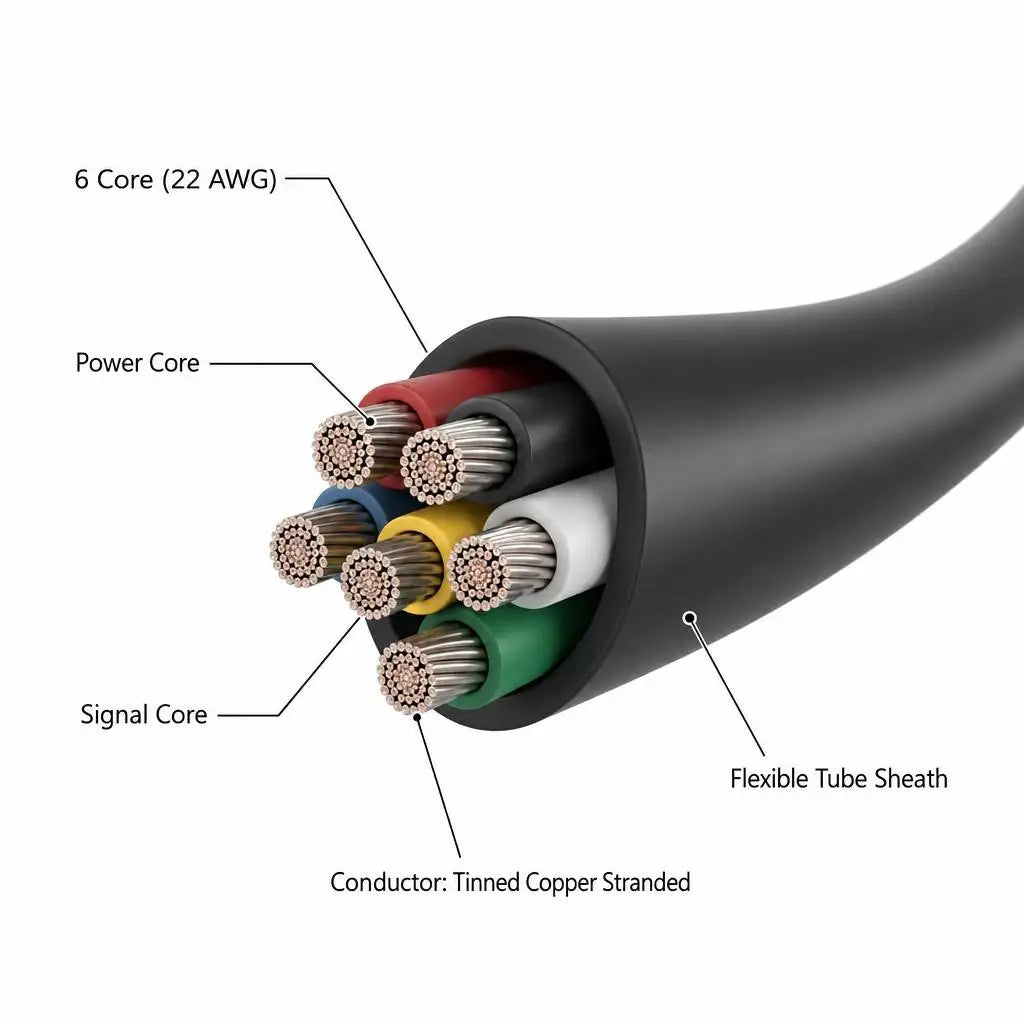

• Conductor Structure: 2 Power plus 4 Signal Conductors
• Power Conductor: 22 AWG Tinned Stranded Copper
• Signal Conductor: 22 AWG Same Wire Type Optional
• Color Coding: Red Black Yellow Green Blue White
• Power Pair: Red V plus Black GND
• Signal Pair: Yellow CLK Green DATA Blue Return White CS
• Core Construction: Flexible Stranded for Repeated Bending
• Hybrid Design: Combined Power and Signal in One Cable
• Insulation: Same Insulation for All Conductors
• Alternative Option: 4 Core Version 2 plus 2 Available
• Conductor Material: Tinned Copper Stranded
• Insulation Material: Flexible Polymer Insulation
• Jacket: Flexible Wear Resistant Jacket
• Working Temperature: -20°C to +80°C
• Model Number: PP-HYB-6C-22AWG
• Brand Name: PrimePro
• Place of Origin: BEIJING

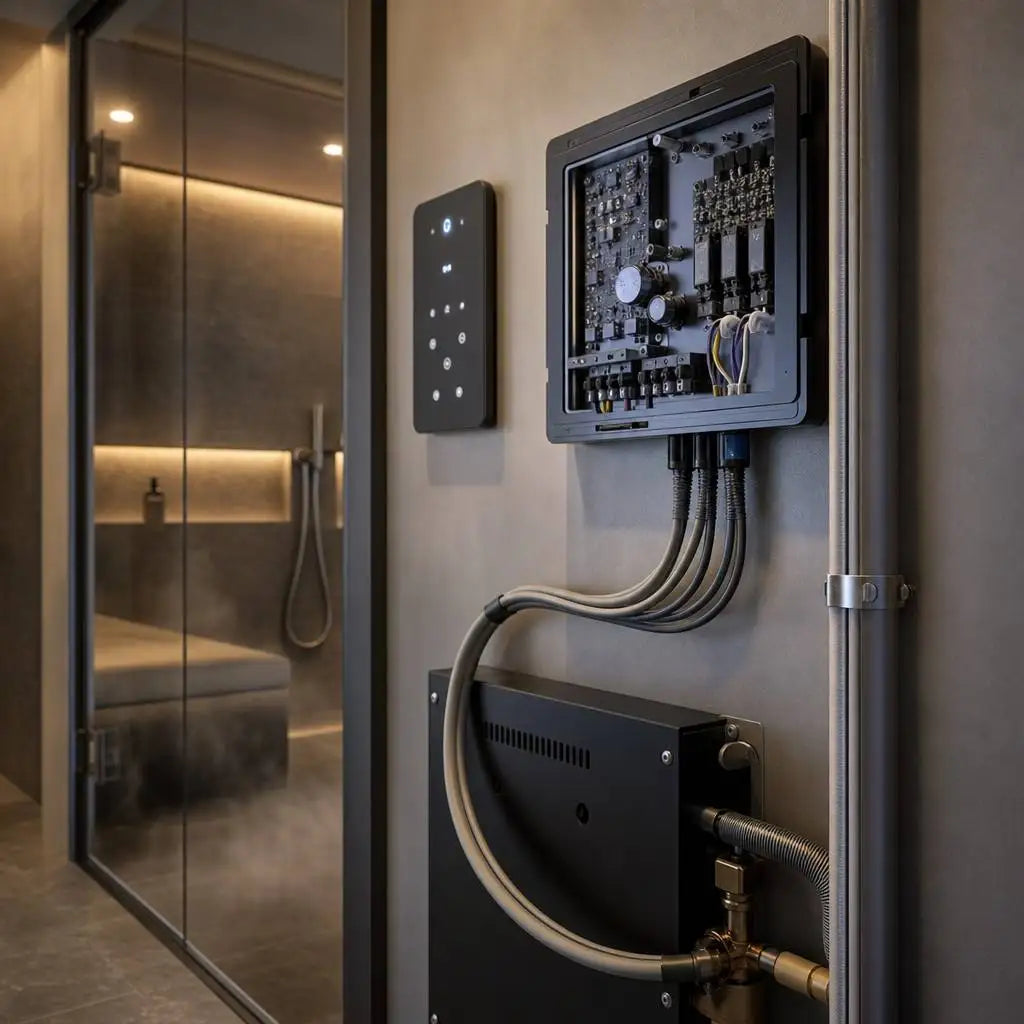

• Application: Humidifier and Steam Equipment
• IP Level: IP67 after Proper Termination
• Size: 6 Core 22 AWG Hybrid
• Shielding: Tinned Copper Braid Shield
• Flex Life: ≥100,000 Cycles
• Impedance: 100 Ω
