DPCZ5MCSM 13x(2x0.34)P Watertight Underwater Signal Cable 500V AC/DC FEP Insulated Tinned Copper

Product Specifications

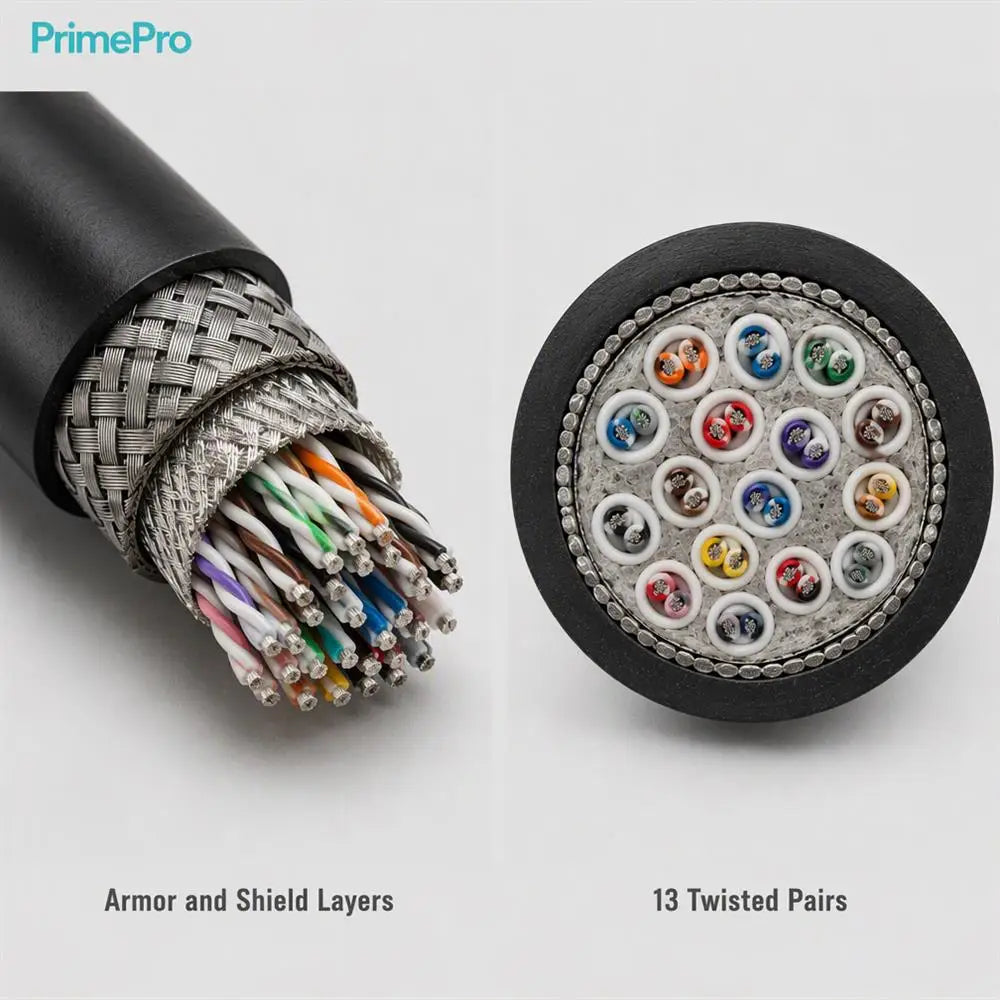

• Core Configuration: 13x(2x0.34)P
• Conductor Structure: 7/0.25 mm water-blocking tinned copper
• Pairing Diameter: 2.5+/-0.2 mm
• Shielding: Tinned copper braid, 0.10 mm wire, braid >=90%

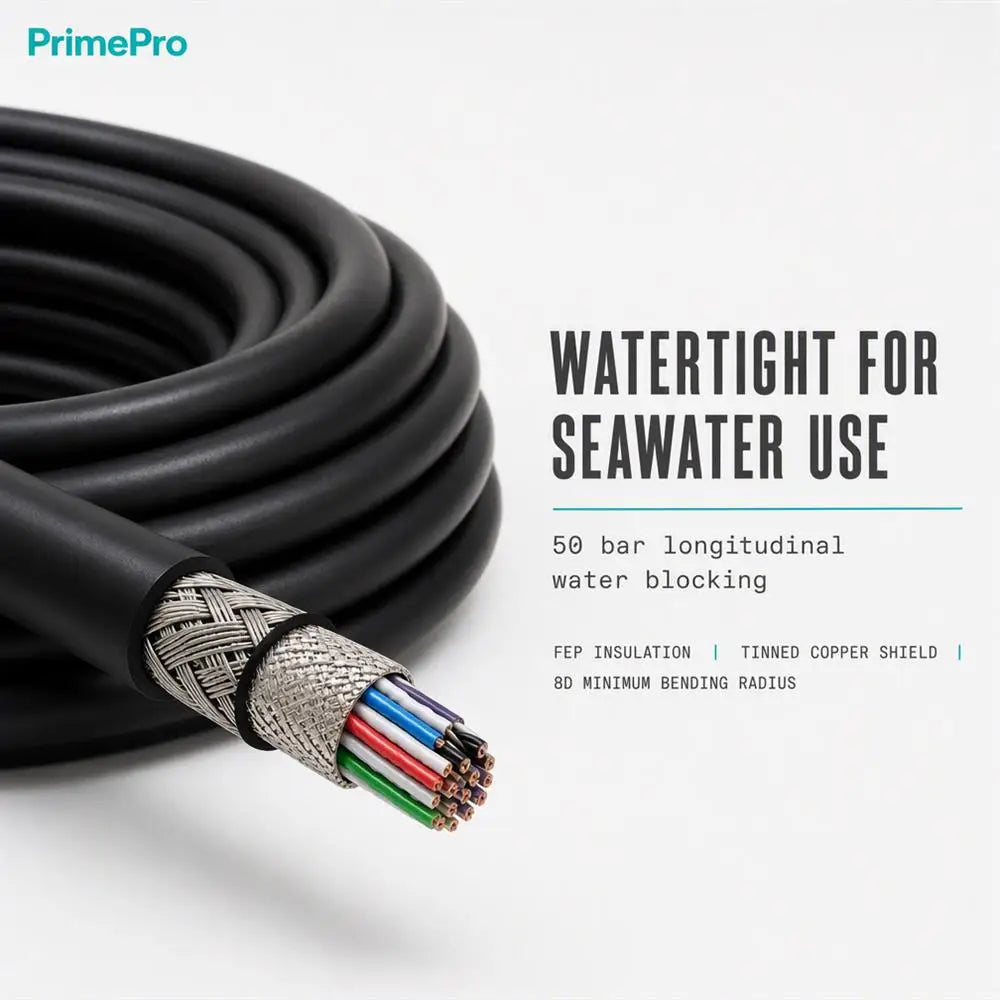

• Water-Blocking Test: 50 bar (5 MPa) for 24 h; leakage <0.1 L/h
• Inner Jacket: Black CSPE, minimum thickness >=1.0 mm
• Armoring: Stainless steel wire, 0.25 mm single wire
• Outer Jacket: Black CSPE, minimum thickness >=2.0 mm
• Voltage Withstand: Core-core 4000 V; core-shield 2500 V, 5 min
• Bending Radius: Minimum 8D
• Insulation Material: FEP
• Conductor Material: Water-blocking tinned copper wires
• Jacket: Black CSPE; inner >=1.0 mm, outer >=2.0 mm
• Working Temperature: -40 to +90 C
• Model Number: DPCZ5MCSM
• Brand Name: PrimePro
• Place of Origin: Beijing
• Application: Underwater telecom signal transmission
• IP Level: To be confirmed

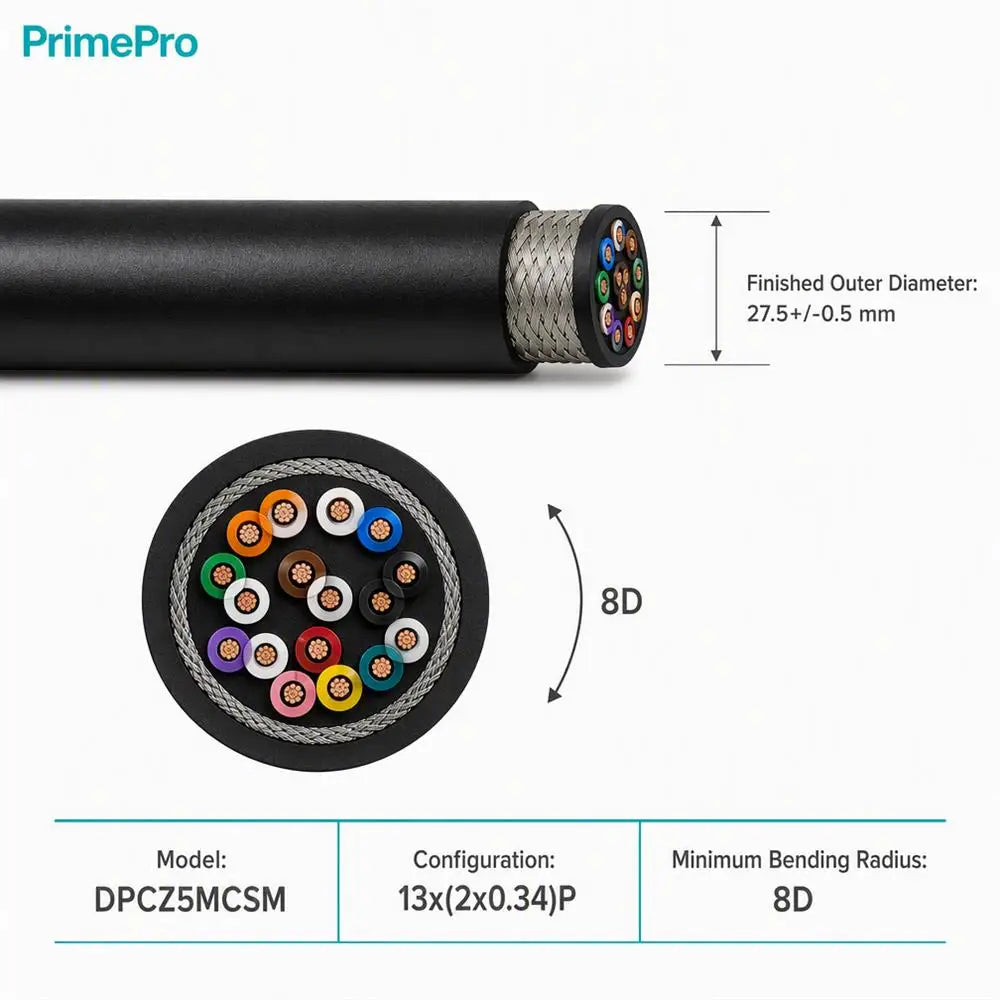

• Size: 13x(2x0.34)P; OD 27.5+/-0.5 mm
• Shielding: Tinned copper braid, 0.10 mm wire, braid >=90%
• Flex Life: ≥1,000,000 cycles (dynamic)
• Impedance: To be determined
