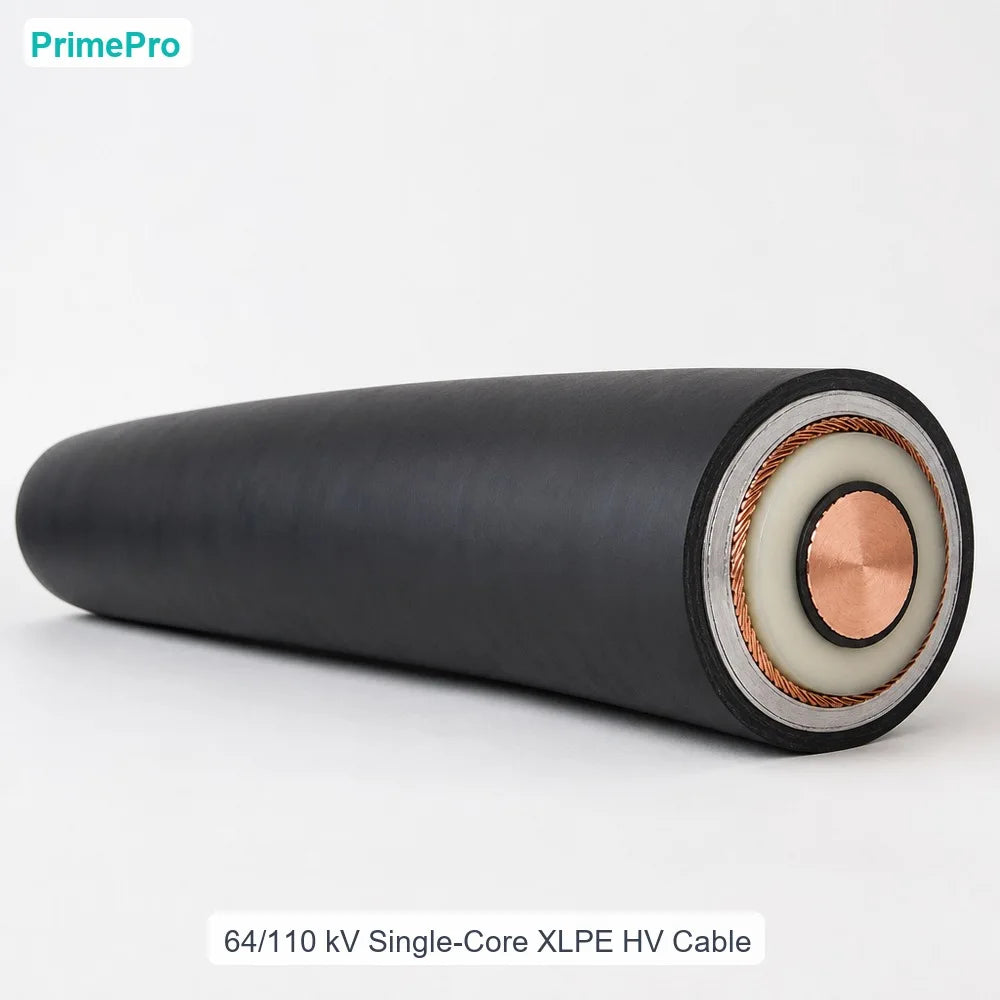

64/110kV Single Core XLPE HV Power Cable 1x500/150mm2 Copper Conductor Wire Screen LSZH Water Blocked

Product Specifications

• Rated Voltage: 64/110 kV (Um 126 kV)

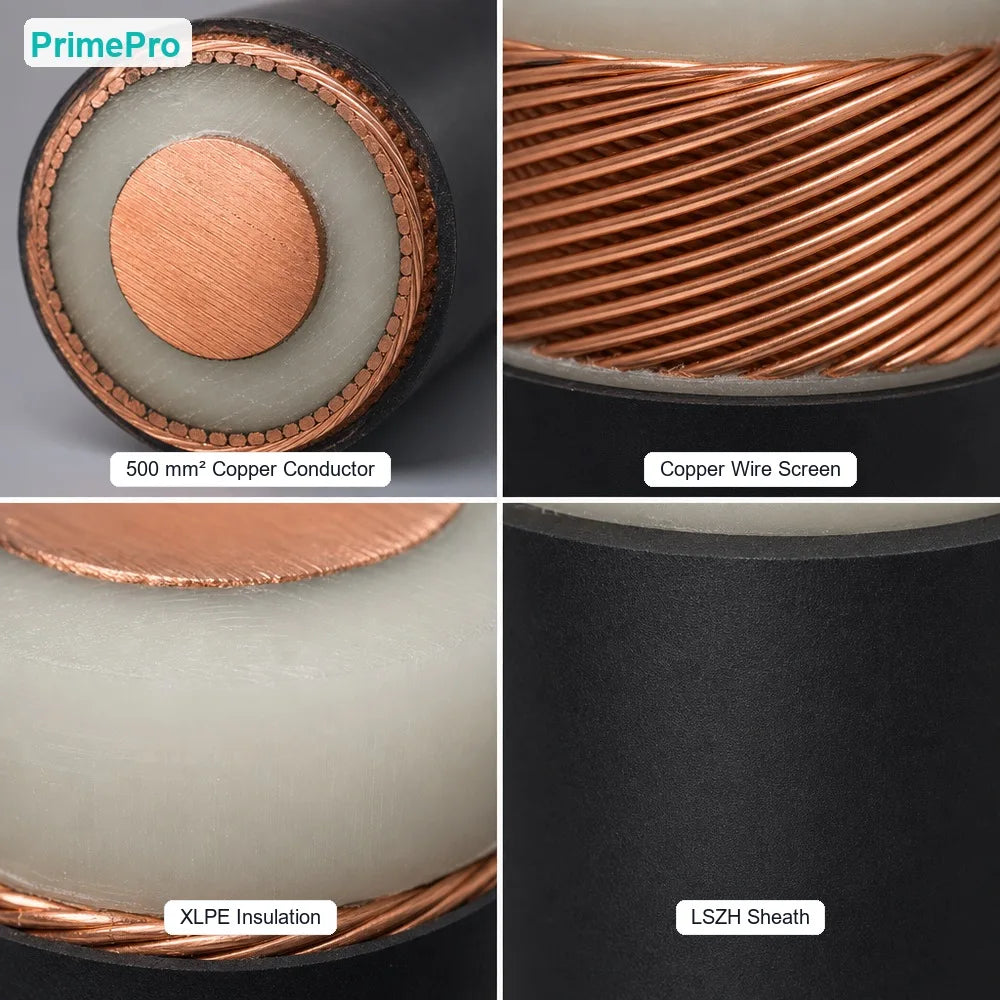

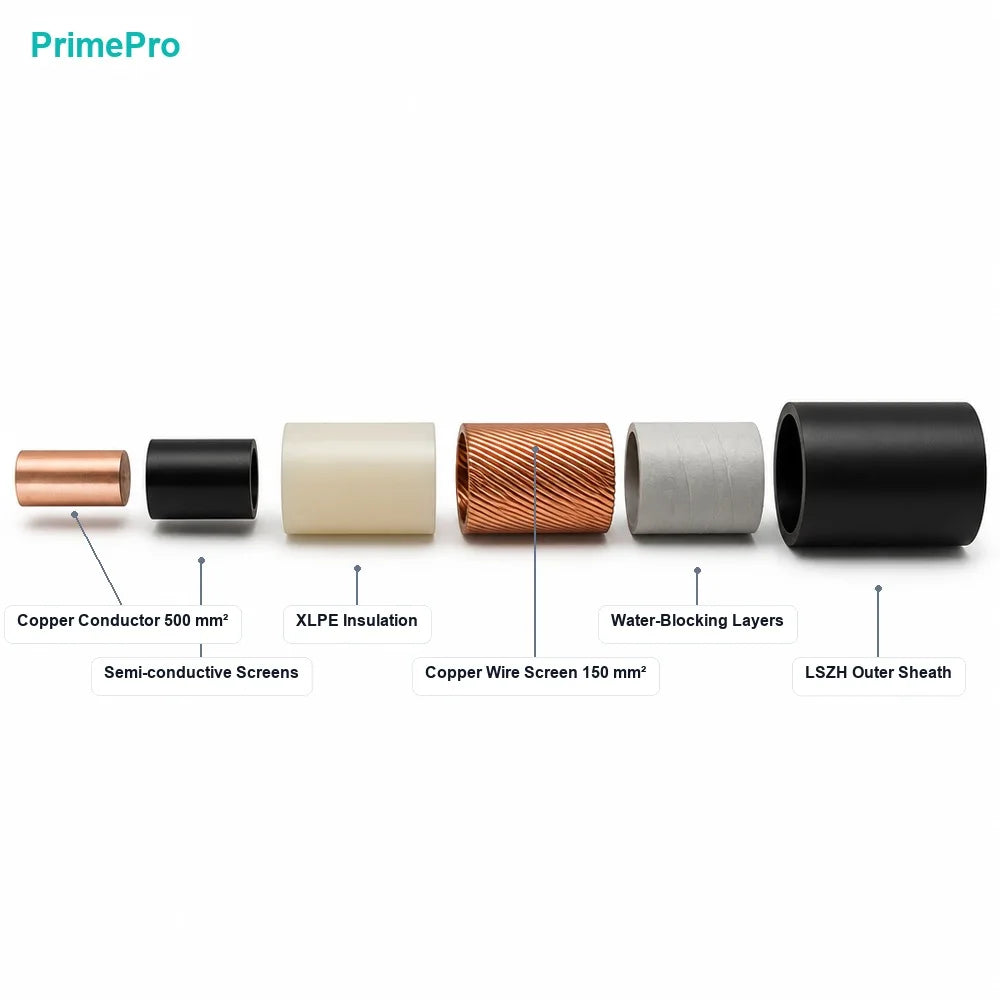

• Conductor: Copper, 500 mm² (IEC 60228)
• Metal Screen: Copper wires, 150 mm²
• Insulation: XLPE (cross-linked polyethylene)
• Water Blocking: Longitudinal + radial water barrier
• Outer Sheath: LSZH, halogen-free (HF type)
• Design Reference: IEC 60840:2020 + AMD1:2023
• Max. Conductor Temp.: 90 °C (short-circuit 250 °C, ≤5 s)
• Application: HV power transmission & distribution networks

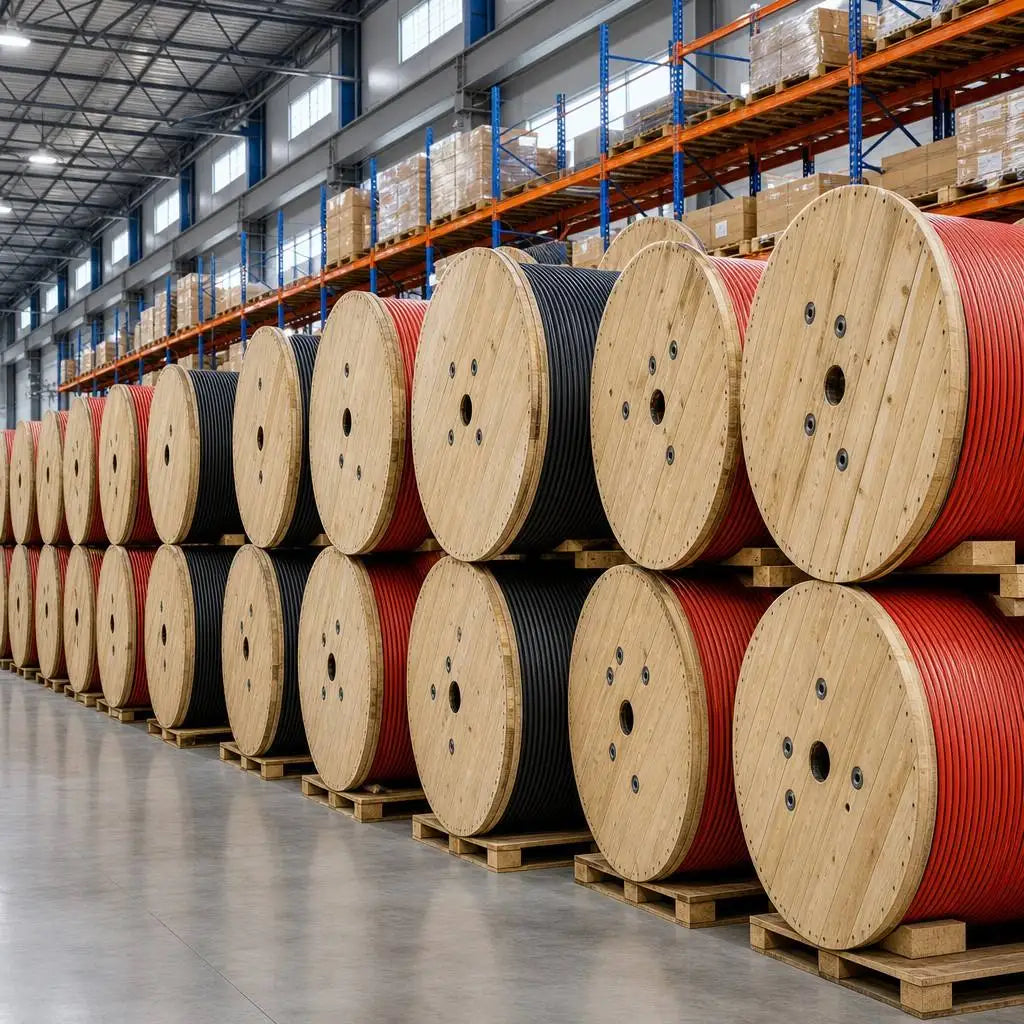

• Supply Option: Drum lengths / project supply on request
• Conductor Material: Copper (electrolytic)
• Insulation Material: XLPE (cross-linked polyethylene)
• Rated Voltage: 64/110 kV (Um 126 kV)
• Size: 1x500/150 mm2
• Model Number: PvPng(A)2g-HF equivalent type
• Brand Name: PrimePro
• Place of Origin: Beijing
• Application: HV power transmission and distribution
• IP Level: N/A (cable; per installation)
• Jacket: LSZH halogen-free (HF)
• Rated Current: On request (per IEC 60287)
• Type: Single-core HV power cable
• Working Temperature: 90 °C max. (SC 250 °C, 5 s)
• Flame Retardant Class: Halogen-free flame-retardant LSZH
